61 35 954 Remove and install/replace the interior aerial for the comfort access system (rear seat)

Necessary preliminary tasks:

• Remove REAR CONSOLE COVER IN THE REAR

Release screws (1).

Feed the interior aerial for the comfort access system (2) out under the trim panel (3).

Unlock associated plug connection and disconnect.

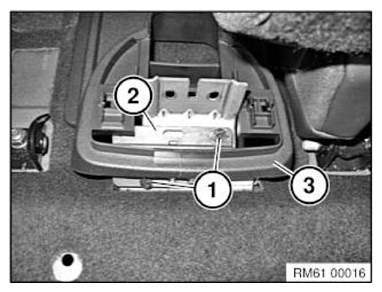

Fig 1: Identifying Comfort Access System, Trim Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
