65 13 080 Removing and installing/replacing speaker (tweeter in side trim panel)

Necessary preliminary tasks:

• Remove REAR SIDE TRIM PANEL

Disconnect plug connection (1).

Feed the resistor (2) out.

Carefully unlock the latch mechanisms at the marked points and remove the speaker (3).

Installation note:

None of the latch mechanisms must be damaged

If necessary, accompanying gasket must not be missing!

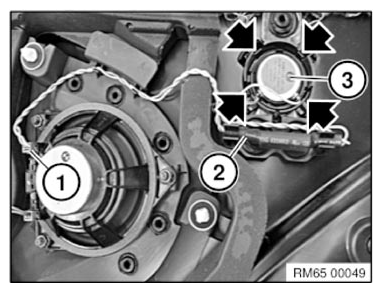

Fig 1: Identifying Speaker, Resistor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
