65 75 055 Removing and installing/replacing emergency power siren with tilt sensor

Necessary preliminary tasks:

Unscrew nuts (1).

Tightening torque 65 75 3AZ .

Remove holder (2) with emergency power siren.

Fig 1: Identifying Emergency Power Siren Holder And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release cable fixation.

Remove the holder (3) with emergency power siren.

Replacement:

Slacken nut (2).

Remove emergency power siren (3) from holder.

Tightening torque 65 75 2AZ .

Installation note:

Make sure tilt alarm sensor is correctly seated in holder (2).

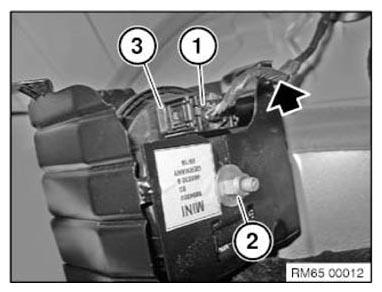

Fig 2: Identifying Emergency Power Siren Holder, Nut, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
