51 13 095 Removing and installing/replacing cover on front side wall left or right

Necessary preliminary tasks:

• Remove SIDE REPEATER
• Remove TRIM STRIP FROM SIDE WALL
• Remove WHEEL ARCH COVER  in side wall area

Release cover (1) at clips (2) and remove.

Installation note:

Replace faulty clamps (2).

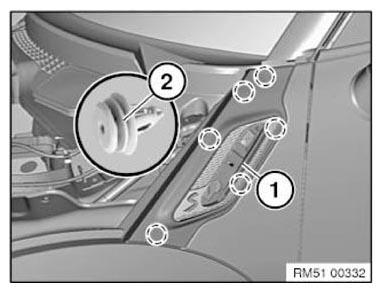

Fig 1: Identifying Front Side Wall Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
