51 12 050 Removing and installing/replacing support for rear bumper panel

Necessary preliminary tasks:

• Remove BUMPER PANEL

If necessary, detach cable for ultrasonic sensor from support (2).

Release nuts (1) on left/right and remove support (2).

Tightening torque 51 12 1AZ .

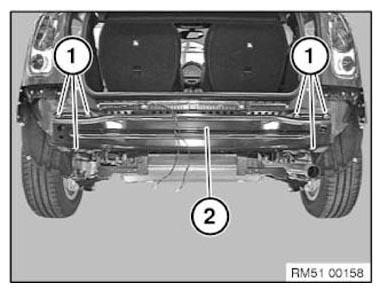

Fig 1: Identifying Rear Bumper Panel Support Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
