51 45... Removing and installing/replacing lid of air outlet vent cover, left or right

Special tools required:

When working with trim panels, be sure that visible surfaces are not damaged or scratched (e. g. with sharp-edged tools).

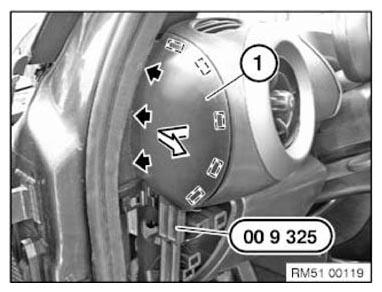

Use special tool 00 9 325 to unclip the side dashboard cover (1) towards the rear.

Fig 1: Removing Side Dashboard Cover Towards Rear Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

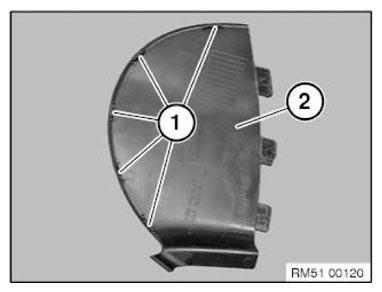

The clamps (2) on the side dashboard cover (1) must not be damaged or missing.

Fig 2: Identifying Clamps On Side Dashboard Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclamp lid of air outlet vent cover (1) from the bottom to the top as shown using special tool 00 9 325 .

Fold lid of the air outlet vent cover (1) out slightly and feed out toward the rear.

Fig 3: Removing Air Outlet Vent Cover Lid Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Plastic tabs (1) on lid of air outlet vent cover (2) must not be damaged or missing.

Fig 4: Identifying Plastic Tabs On Air Outlet Vent Cover Lid

Courtesy of BMW OF NORTH AMERICA, INC.
