51 45 181 Removing and installing/replacing instrument panel trim, bottom right

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary work:

Release screws (2) on bottom right instrument panel trim (1).

Using special tool 00 9 325 , unclamp instrument panel trim at bottom right (1), at marked area, from outside to inside.

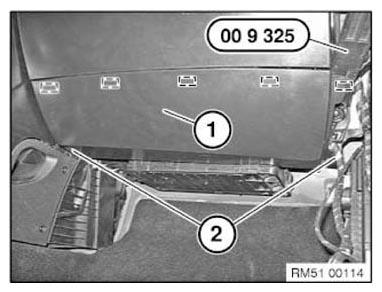

Fig 1: Removing Trim Panel Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (2) must not be damaged or missing.

Replacement

Modify retaining clips (2) on bottom right instrument panel trim (1).

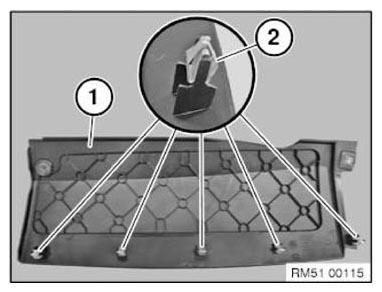

Fig 2: Identifying Retaining Clips On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
