31 11 001 Replacing front axle support
NOTE:
Replace self-tapping screws for mounting following components on front axle/engine support.
- Steering box
- Holder, wishbone/retaining bracket, anti-roll bar
- Bumper holder
- Holder, ride height sensor
- Front axle support (if replacing engine supports)
Necessary preliminary tasks:
- Lower front axle support. See LOWERING/RAISING FRONT AXLE SUPPORT (SWZ00-2040) or LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) .
- Remove BOTH TRACK ROD ENDS FROM SWIVEL BEARING
- Remove BOTH WISHBONES FROM SWIVEL BEARING .
- Remove BOTH ANTI-ROLL BAR LINKS FROM ANTI-ROLL BAR .

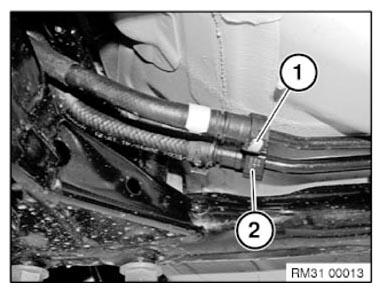

Unlock and detach fuel delivery and return line (1 and 2).
Thread out fuel lines between front axle support and anti-roll bar in the direction of the engine.
Recycling:
Catch and dispose of escaping fuel.
Observe country-specific waste disposal regulations.
Installation note:
Use previous front axle support as a template for modifying or replacing small parts.
Modify STABILIZER .
If necessary, modify RIDE HEIGHT SENSOR .
Modify BOTH WISHBONES .
Modify STEERING BOX .
Modify BOTH BUMPER HOLDERS .
After installation:
- Wheel alignment is only necessary after replacement and/or renewal of front axle support. See ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
