Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove shift knob/handle. See SHIFT LEVER KNOB or SHIFT LEVER HANDLE . Pull off chrome ring with gaiter. See Fig 1.

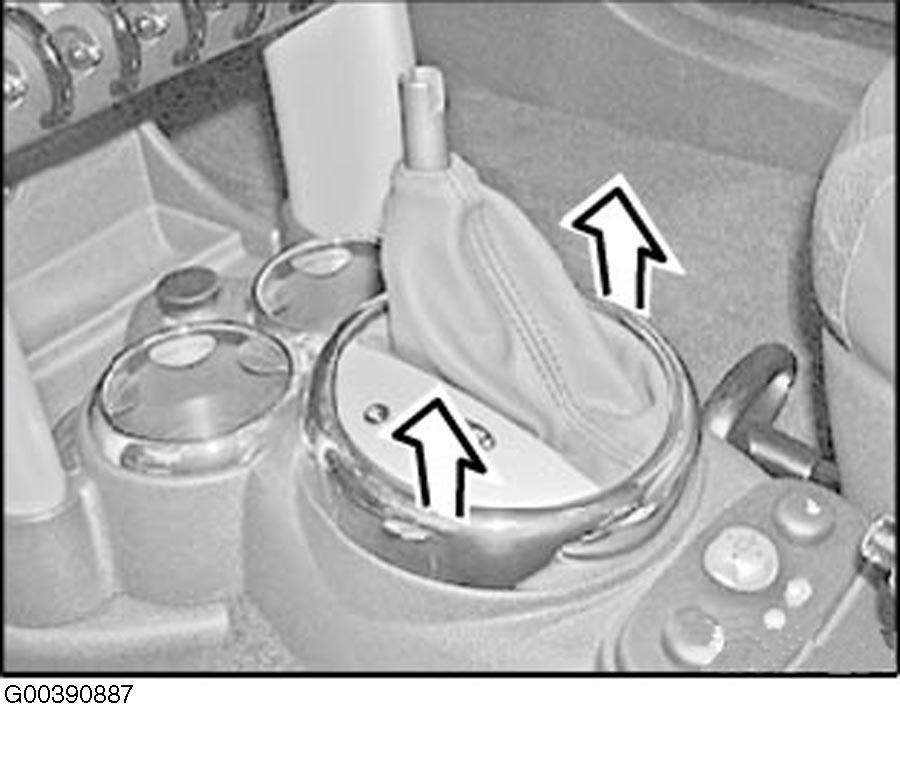

Fig 1: Pulling Off Chrome Ring With Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector (1). See Fig 2.

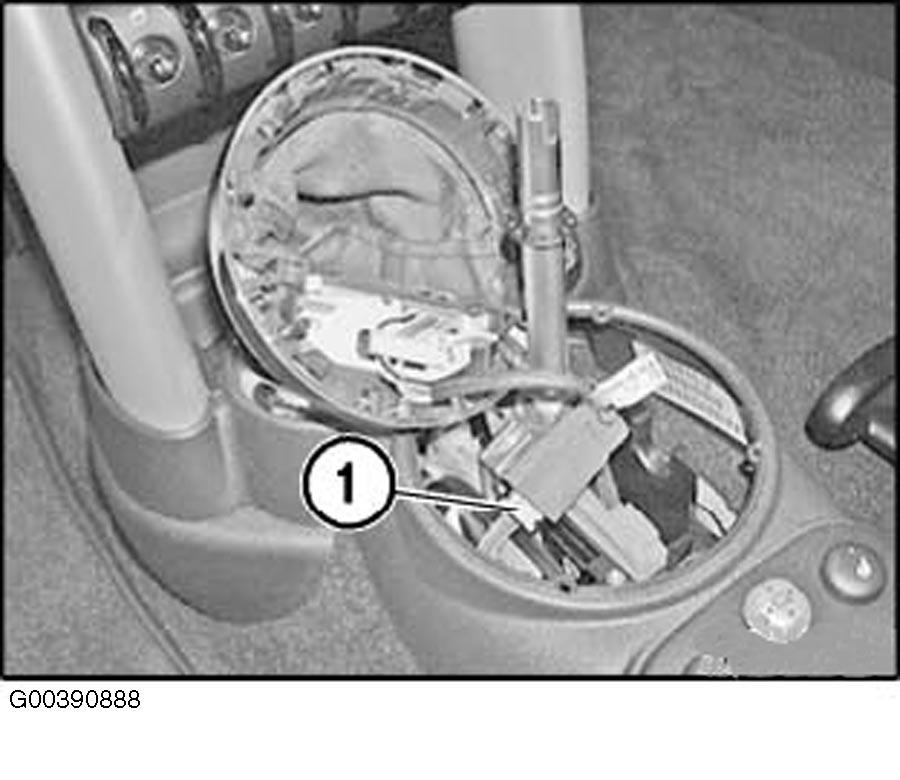

Fig 2: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock detent lugs (1) of mounting ring. Remove chrome ring (2). See Fig 3.

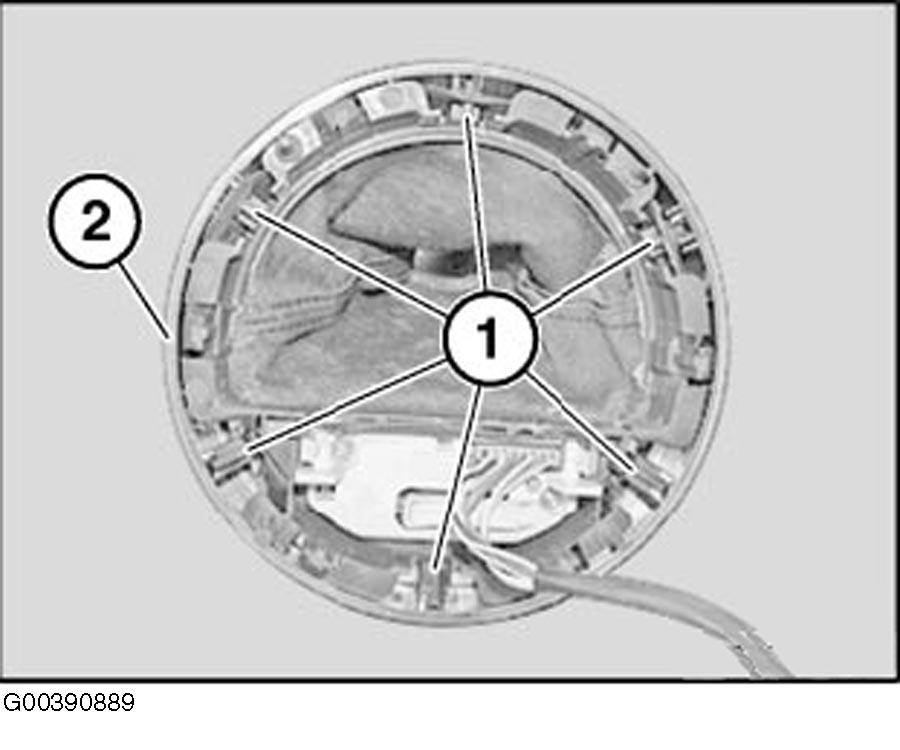

Fig 3: Unlocking Detent Lugs & Removing Chrome Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1). See Fig 4. Convert shift display.

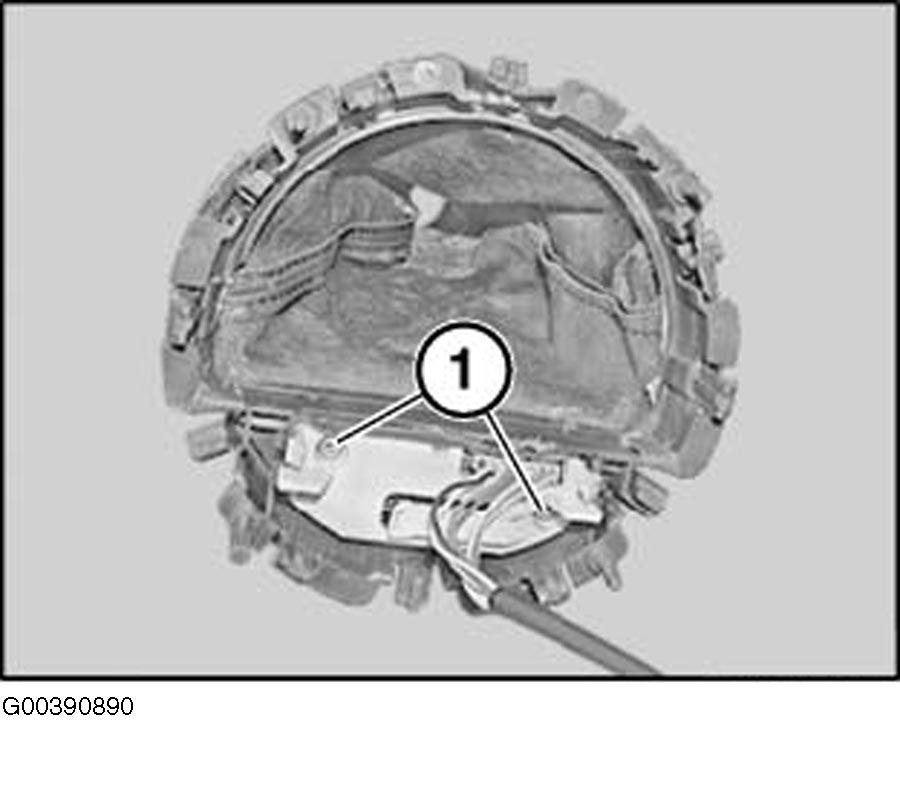

Fig 4: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.
