512190 Adjuster

Minimum set: Mechanical tools AM

NOTE: (door lock tensioner) For pre-tensioning front and rear door locks when installing. Change to tool through use of noise-optimized locks from 02/2004. Illustration items: 1 = knurled nut 51 2 191 2 = support 51 2 192 3 = protection 51 2 196 4 = mandrel 51 2 197

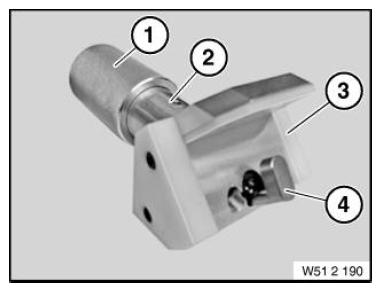

Fig 1: Identifying Adjuster (512190)

Courtesy of BMW OF NORTH AMERICA, INC.

Storage Location: B44

C44

SI number: 01 06 02 (864)

Consisting of:

1 = 0494470 Nut

NOTE: (Knurled nut) Replaced by 00 9 120 (0 490 504)

2 = 0494471 Upholstery

2 = 0494472 Guard

NOTE: Is replaced by 51 2 196 with the use of noise-optimized locks from 02/2004

2 = 0494473 Mandrel

NOTE: Is replaced by 51 2 197 with the use of noise-optimized locks from 02/2004

2 = 0494474 Shaped element

NOTE: E85 (omitted)

3 = 0494906 Guard

NOTE: Replaces guard 51 2 193

4 = 0494907 Mandrel

NOTE: Replaces mandrel 51 2 194
