2360906 Adapter cable

Minimum set: Measuring and testing equipment MP

In conjunction with: Adapter cable in combination with test cable 2214015 only

NOTE: Adapter cable, 48-pin, for diagnostic work on engine control unit "MEVD 17.2.2". Only in connection with adapter cable 83 30 2 214 015. Adapter cables are hung up together in the cable cabinet at the storage location of adapter cable 83 30 2 214 015.

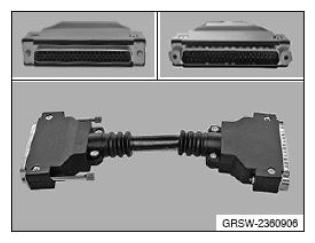

Fig 1: Identifying Adapter Cable (2360906)

Courtesy of BMW OF NORTH AMERICA, INC.

Storage Location: Y3

SI number: 02 04 14 (097)
