36 12 005 Replacing a tire (Run Flat)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

For Special Tool identification, see WHEEL AND TIRES - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

Read the operating instructions for the tire fitting machine. It is essential that all devices and machines are in perfect working order and there is no risk of damaging the disk wheel and tire.

NOTE: Determine which wheel/tire combinations, tire brands and special accessories are approved.
IMPORTANT: To avoid damaging the rims, only use BMW-approved tire mounting lever with plastic cover. Use only BMW-approved tire mounting paste.

To Remove Tire With Tire Fitting Machine:

Remove balance weights from rim and clean rim to remove coarse dirt.

Unscrew valve insert and release air.

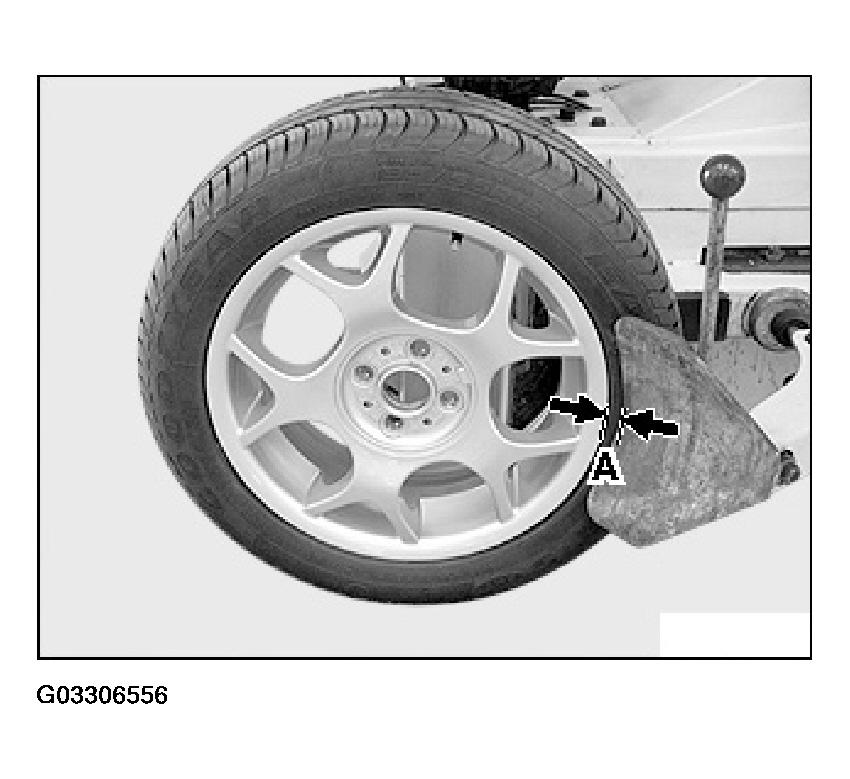

If the tire beading will not detach, first release beading at various point on the wheel before the tire is removed slowly and carefully with the tire horn. Make sure that the maximum distance between the tire horn and rim flange is 2 cm (A).

Apply tire mounting paste generously between the tire and rim flange.

Fig 1: Identifying Maximum Distance Between Tire Horn And Rim Flange
G03306556Courtesy of BMW OF NORTH AMERICA, INC.

Force off inner side of wheel, inserting special tool 36 1 098 between rim flange and tire bead.

Force off outer side of wheel, apply a generous coating of tire mounting paste between rim flange and tire bead.

Grip wheel with outer side facing upwards on fitting machine.

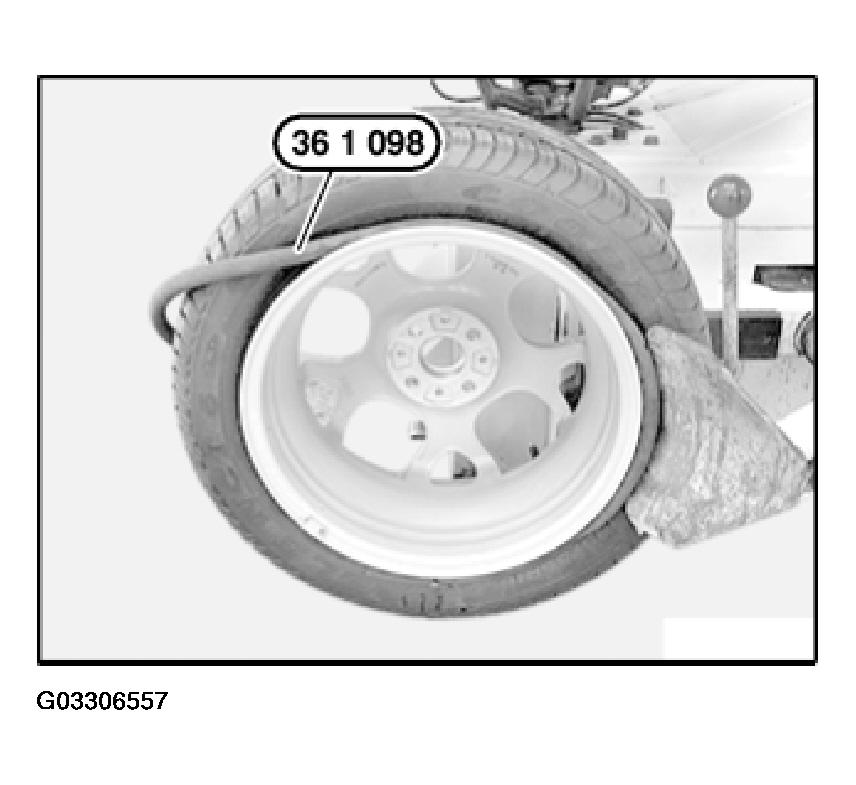

Fig 2: Inserting Special Tool 36 1 098 Between Rim Flange And Tire Bead
G03306557Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 36 1 093 and 36 1 201 on rim flange as illustrated.

Slide special tool 36 1 091 / 36 1 092 between tire bead and rim flange, lever tire bead over rim flange as illustrated.

Secure special tool 36 1 091 / 36 1 092 with connecting cable of special tool 36 1 201.

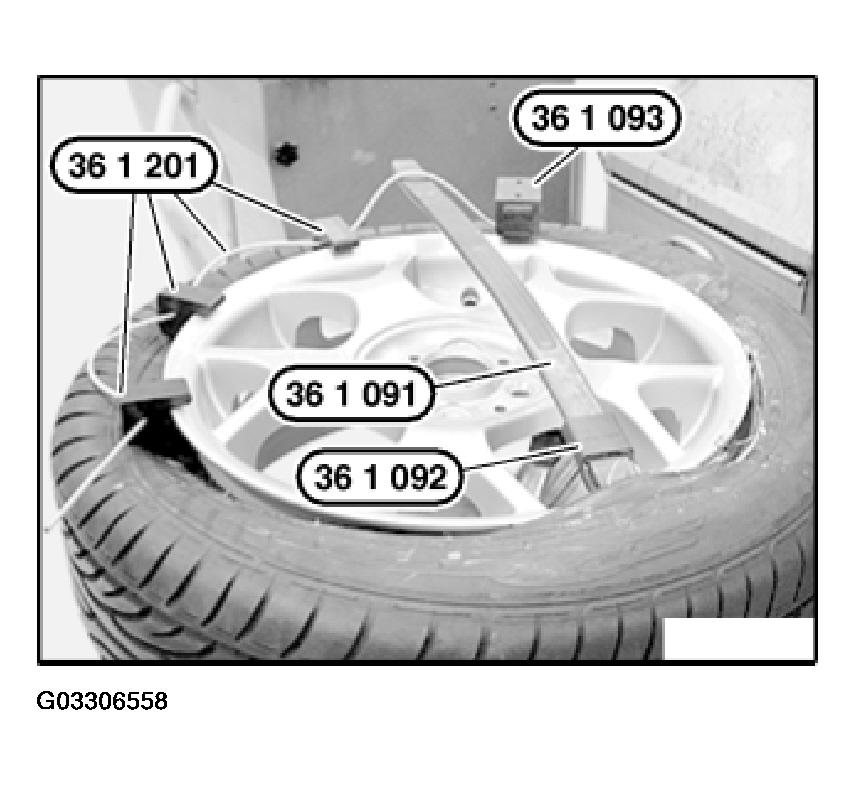

Fig 3: View Of Special Tool 36 1 091/36 1 092
G03306558Courtesy of BMW OF NORTH AMERICA, INC.

Slide second special tool 36 1 091 / 36 1 092 on right next to first special tool 36 1 091 / 36 1 092 between tire bead and rim flange.

Lever tire bead over rim flange.

Remove first special tool 36 1 091 / 36 1 092, slide on right next to second special tool 36 1 091 / 36 1 092 between tire bead and rim flange and lever tire bead over rim flange.

Repeat this procedure in clockwise direction until the entire tire beading is fitted behind the rim flange.

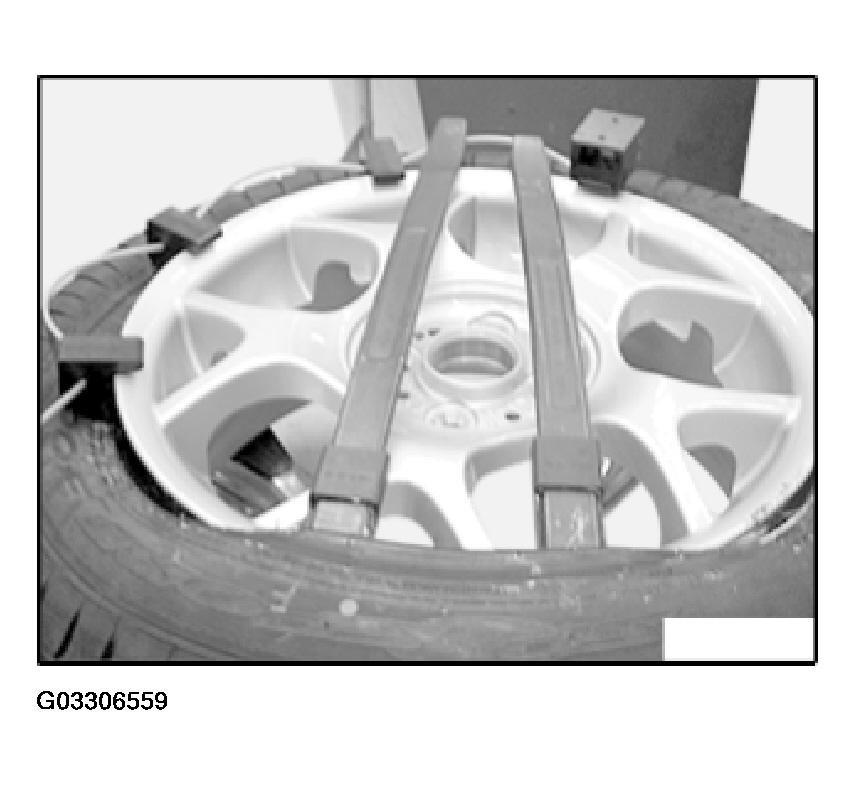

Fig 4: Identifying Tire Bead, Special Tools And Rim Flange
G03306559Courtesy of BMW OF NORTH AMERICA, INC.

Swivel or tilt fitting head into position and allow it to snap into place.

Use tire bar to lever lower tire bead over mounting finger. Run fitting machine forwards in clockwise direction until tire is completely detached from rim.

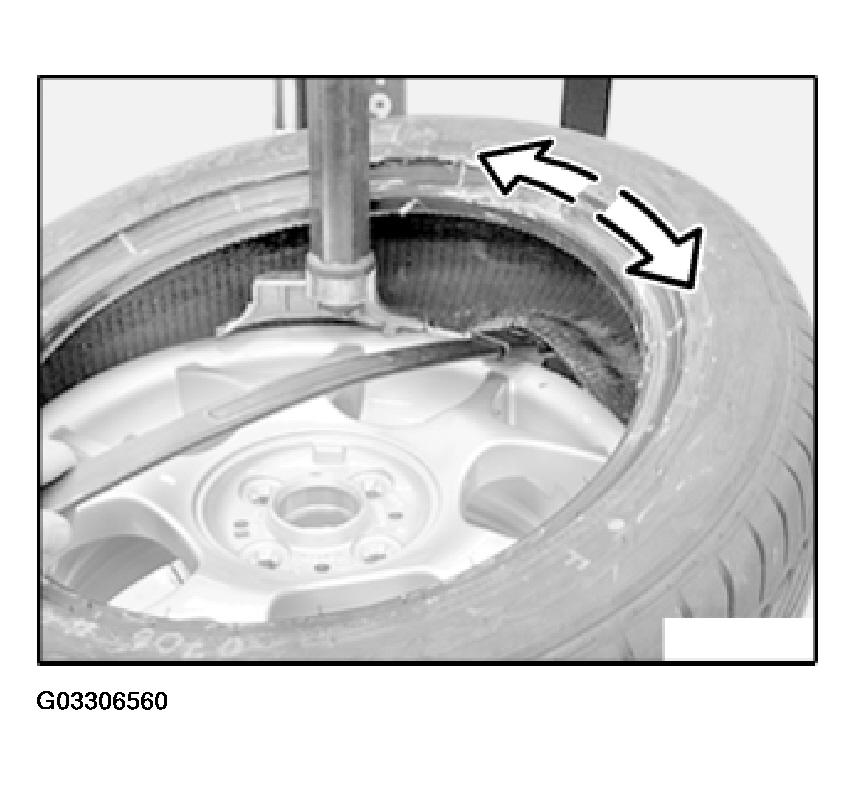

Fig 5: Levering Tire Bead Off Rim
G03306560Courtesy of BMW OF NORTH AMERICA, INC.

Release lock and tilt or swivel back mounting head.

Unclamp and clean rim.

Replace valve.

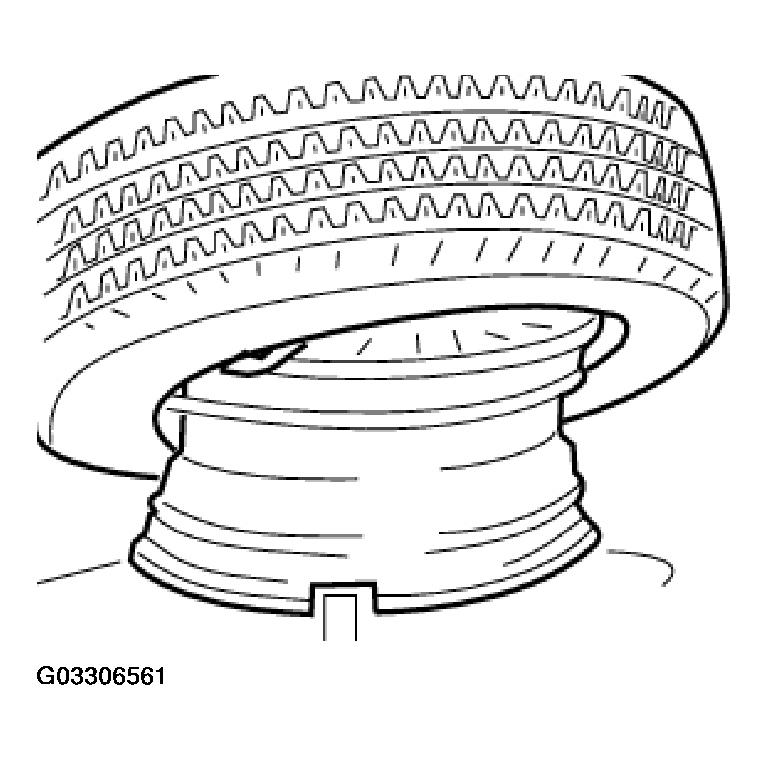

Fig 6: Removing Tire From Rim
G03306561Courtesy of BMW OF NORTH AMERICA, INC.

To Fit Tire With Tire Fitting Machine:

Clamp rim on mounting machine.

Apply tire mounting paste generously between the rim flange and tire bead.

Push tire with lower bead partially over rim flange. Valve 10 cm to right of mounting head.

Swivel or tilt fitting head into position and lock into place. Check setting of mounting head. Reset and tension if necessary.

Press tire by hand under fitting head.

Make sure the tire beading is fitted correctly on the mounting head.

Allow fitting machine to run forwards gradually in clockwise direction.

The lower tire bead now slips into the rim well.

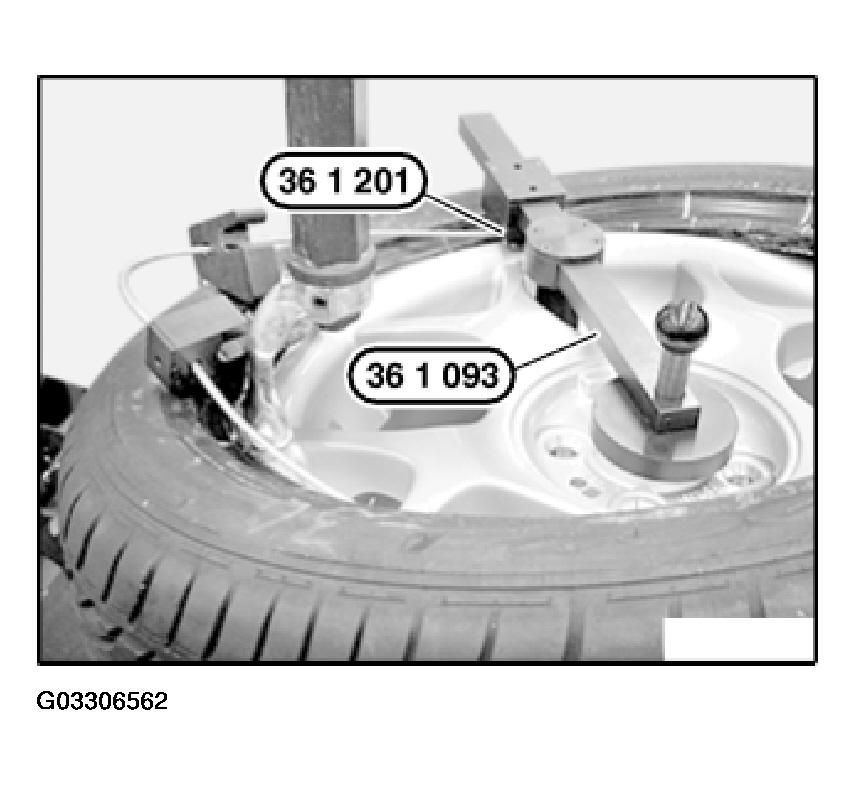

Arrange special tool 36 1 093 on rim as illustrated.

Arrange special tool 36 1 201 on rim flange as illustrated.

Fig 7: Identifying Special Tool 36 1 093 On Rim
G03306562Courtesy of BMW OF NORTH AMERICA, INC.

Make sure the tire beading is fitted correctly on the mounting head.

Allow fitting machine to run forwards gradually in clockwise direction.

Arrange special tool 36 1 201 on rim flange as illustrated.

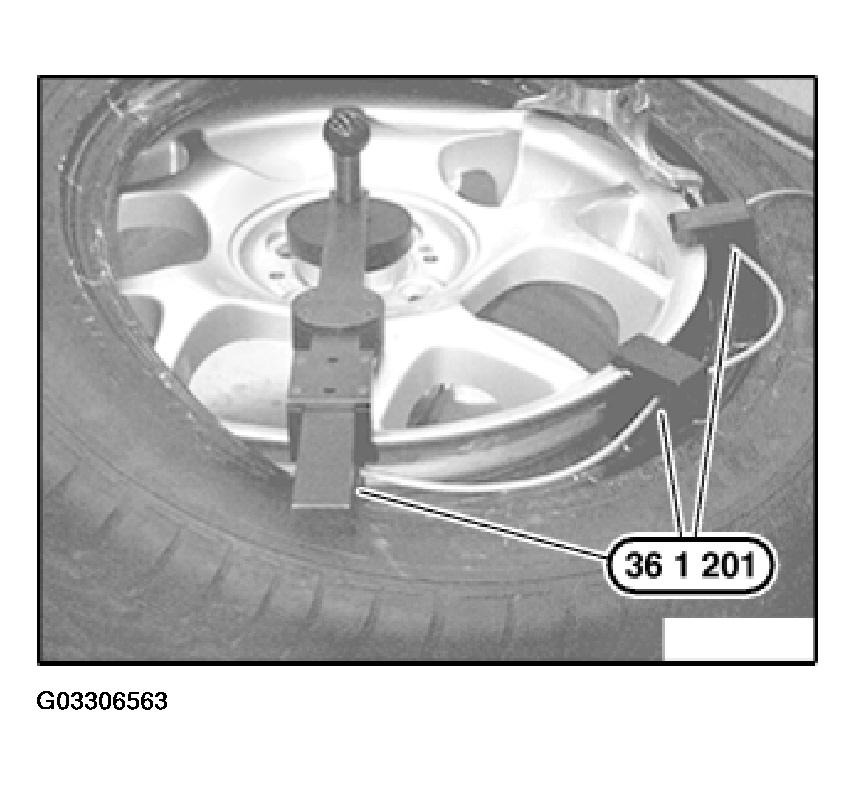

Fig 8: View Of Special Tool 36 1 201 On Rim Flange
G03306563Courtesy of BMW OF NORTH AMERICA, INC.

Allow fitting machine to continue running in clockwise direction. The tire beading snaps into the rim well.

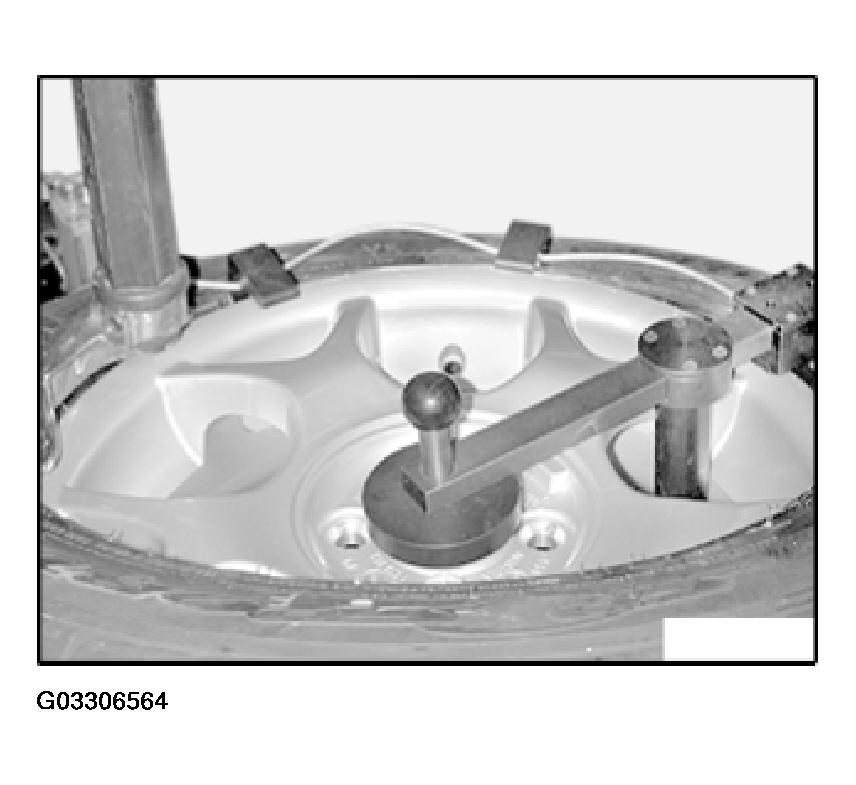

Fig 9: Installing Tire Bead Into Rim Well
G03306564Courtesy of BMW OF NORTH AMERICA, INC.

After completing fitting, first release clamping claws. Inflate tire (without valve insert).

Increase pressure up to 3.3 bar (330 kPa) in steps. Do not further increase the pressure if the tire beading does not fully slip over the edge of the rim.

Release air and force off tire beading again. Coat rim flange again with tire mounting paste.

Inflate tire to 3.3 bar. When the tire beading rests correctly on the bead seats increase the pressure to max. 4.0 bar so that the tire "fits snugly".

Screw in valve and correct tire pressure.

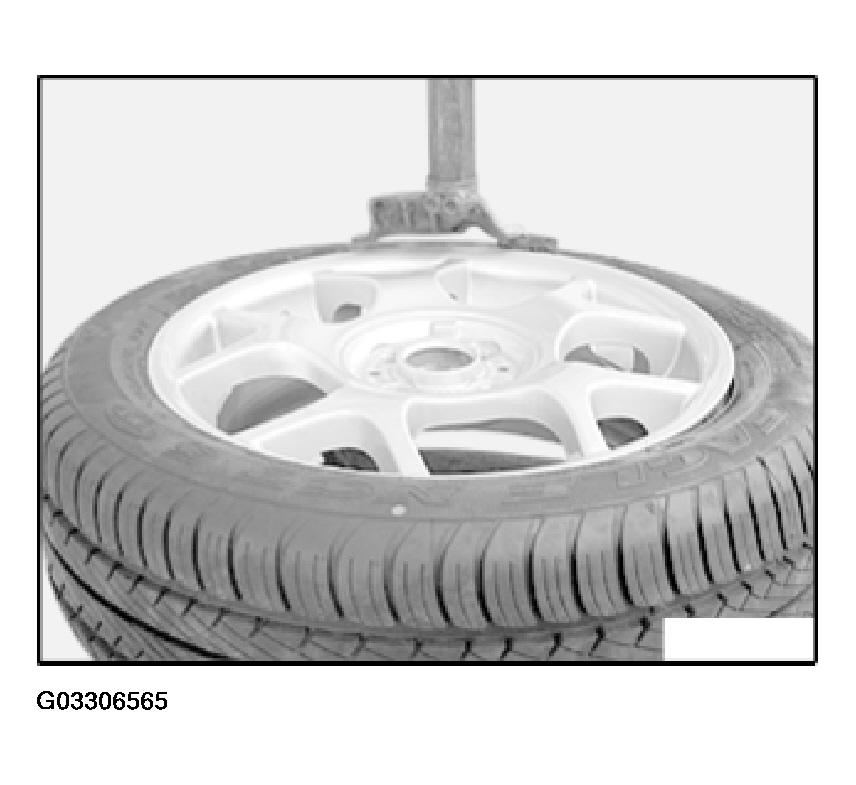

Fig 10: View Of Clamping Claws On Tire Bead
G03306565Courtesy of BMW OF NORTH AMERICA, INC.
