00 2 550 Depth Gauge

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Note: E.g. for determining axial play of transmission shaft and basic adjustment dimension for installing bevel pinion in rear differentials.

Transmission: 240/5, 242/4, 245/5, 245/5Sport, 260/5, 262/4, 265/5, 265/5Sport, 280/5Sport, A4S 200R, A5S 360R, A5S 390R, GS5 -39DZ, diff. 188kom, diff. 220kom, diff. 225kom, diff. type G, diff. type K, diff. type M, S5D 200G, S5D 250G, S5D 260Z, S5D 280Z, S5D 310Z, S5D 320Z, S5D 390Z, S6S 420G, S6S 560G.

Storage location: A12, B12.

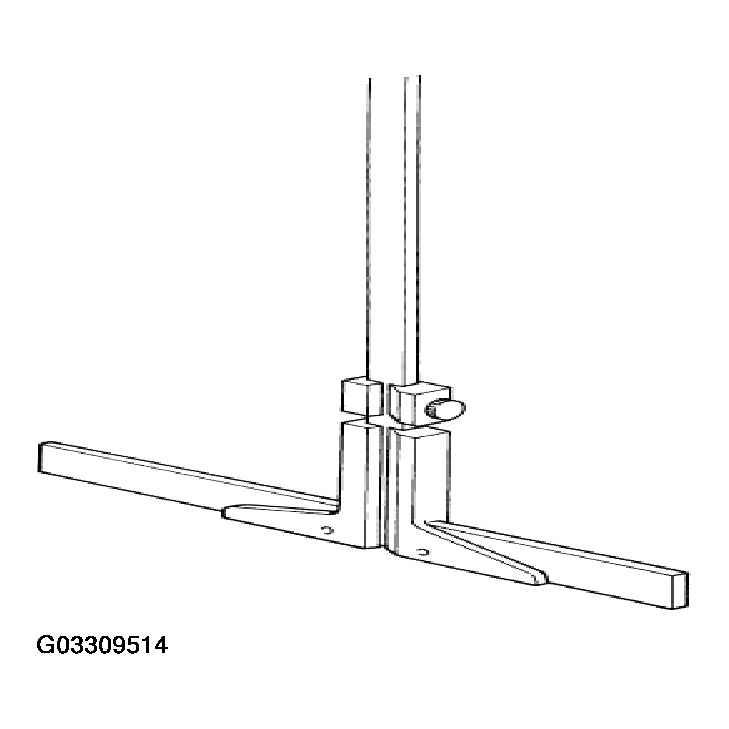

Fig 1: Identifying 00 2 550 Depth Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 00 2 550 .

Depth gauge.
