00 0 200 Cross Member

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: To hold the engine when removing and installing the front axle support, the oil sump and the transmission.

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17.

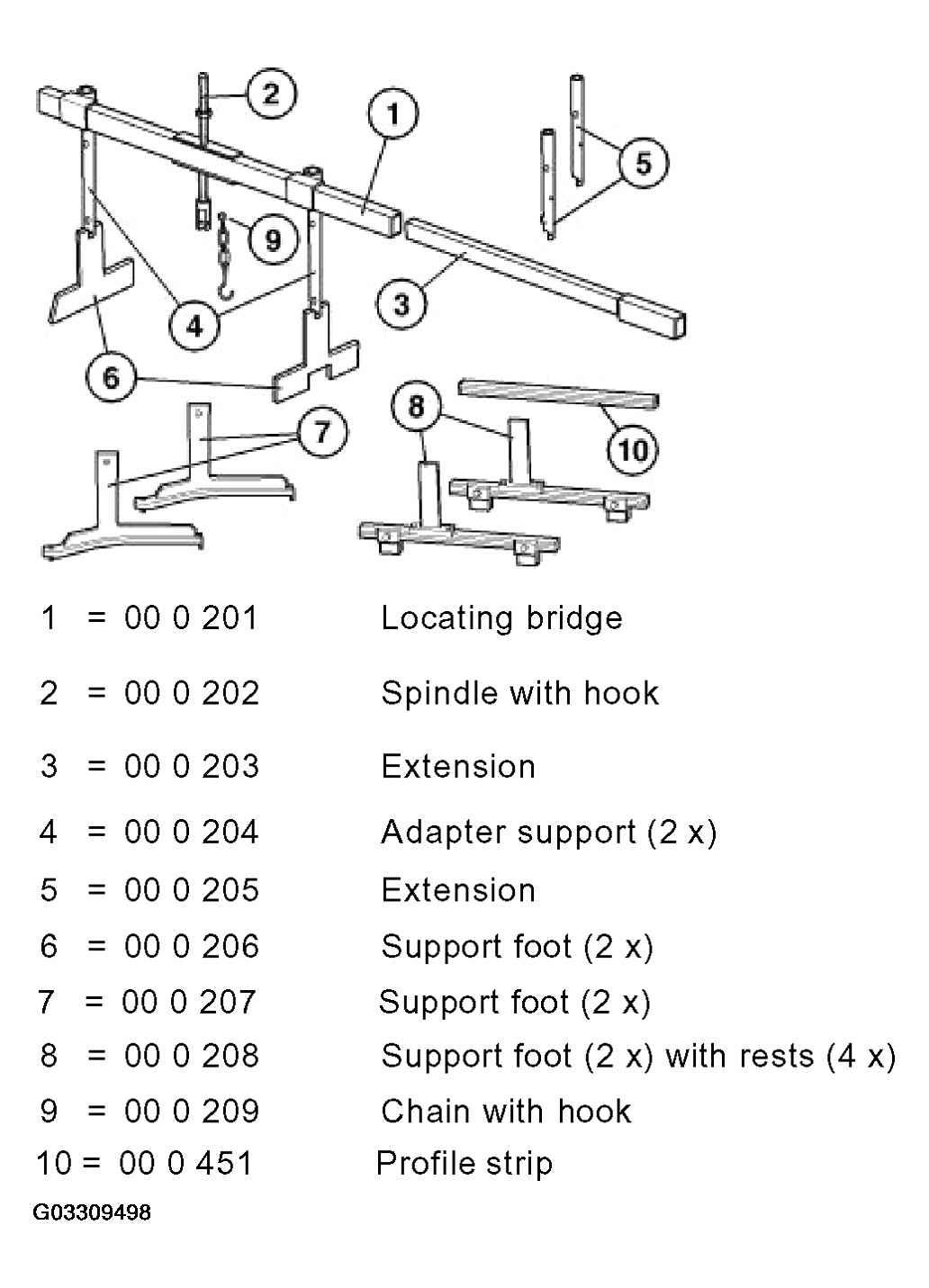

Fig 1: Identifying 00 0 200 Cross Member

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: Single.

SI number: 1 14 01 (766).

Order number: 00 0 200 .

Cross member

Consisting of:

= 00 0 201 Locating bridge.
= 00 0 202 Spindle with hook.
= 00 0 203 Extension.
Note: For extending locating bridge 00 0 201 Model series: E65.
= 00 0 204 Adapter support (2 x).
In conjunction with: 00 0 200 .
= 00 0 205 Extension.
Note: Model series: R50, R53.
= 00 0 206 Support foot (2 x)
Note: Model series: E30, E31, E32, E34, E36, Z3 6-cylinder engines only.
= 00 0 207 Support foot (2 x).
Note: Model: Z3 / 4-cylinder engines only.
= 00 0 208 Support foot (2 x) with rests (4 x).
Note: Model series: E38, E39, E46, E60, E65.
= 00 0 209 Chain with hook.
Note: Version as 11 0 003.
= 00 0 451 Profile strip.
Note: Model series: E85.
