Body Gap Dimensions

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

DIMENSIONS IN MM

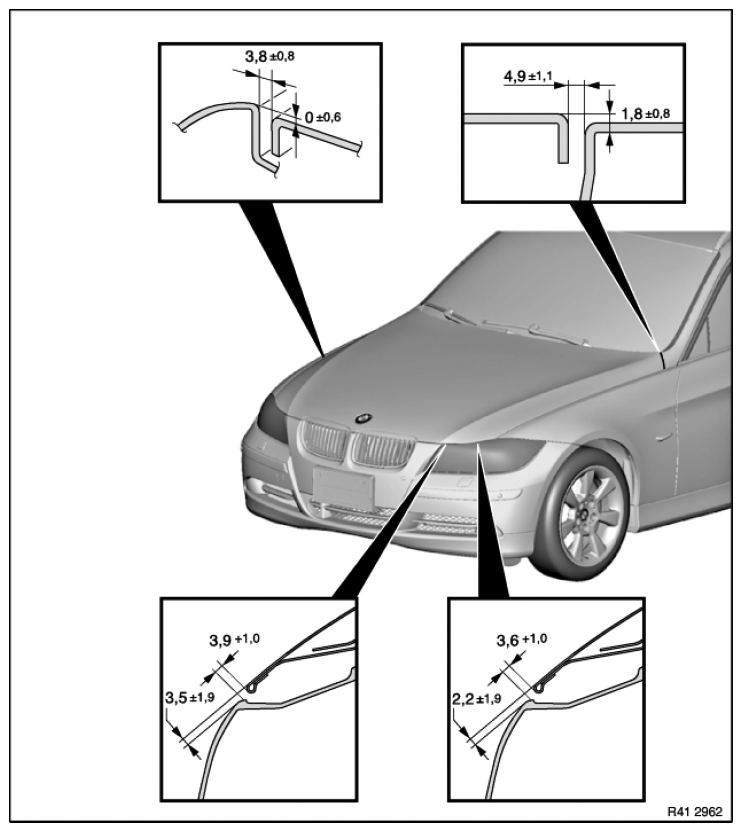

Fig 1: Hood, Headlamp, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points

G06978063

Courtesy of BMW OF NORTH AMERICA, INC.

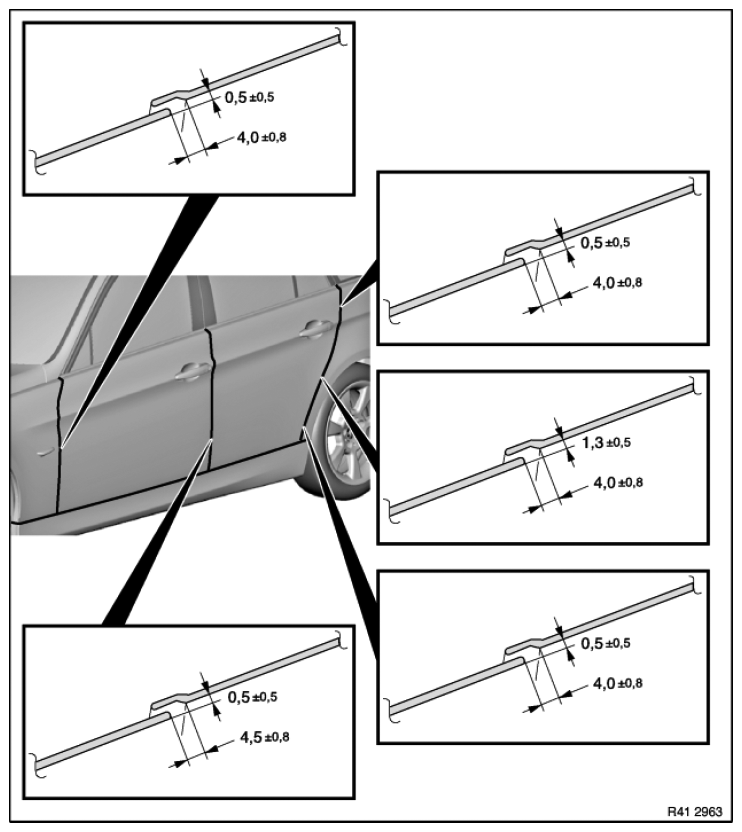

Fig 2: Front Fender, Front Door, Rear Door And Quarter Panel Body Gap Dimensions And Measurement Points

G06978064

Courtesy of BMW OF NORTH AMERICA, INC.

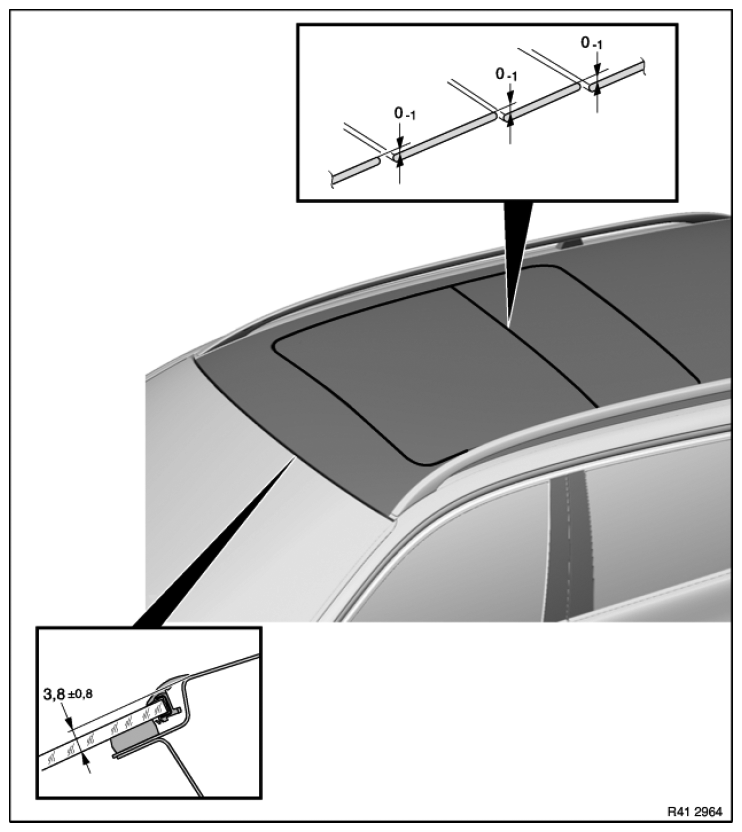

Fig 3: Windshield, Roof And Moonroof Body Gap Dimensions And Measurement Points

G06978065

Courtesy of BMW OF NORTH AMERICA, INC.

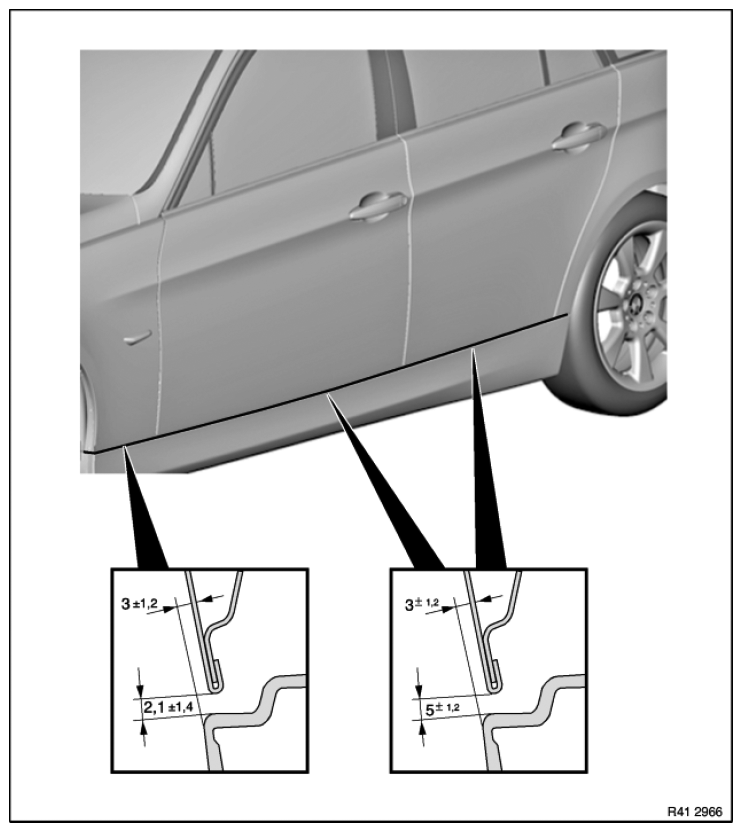

Fig 4: Front Fender, Front Door, Rear Door, Quarter Panel And Sill Trim Panel Body Gap Dimensions And Measurement Points

G06978066

Courtesy of BMW OF NORTH AMERICA, INC.

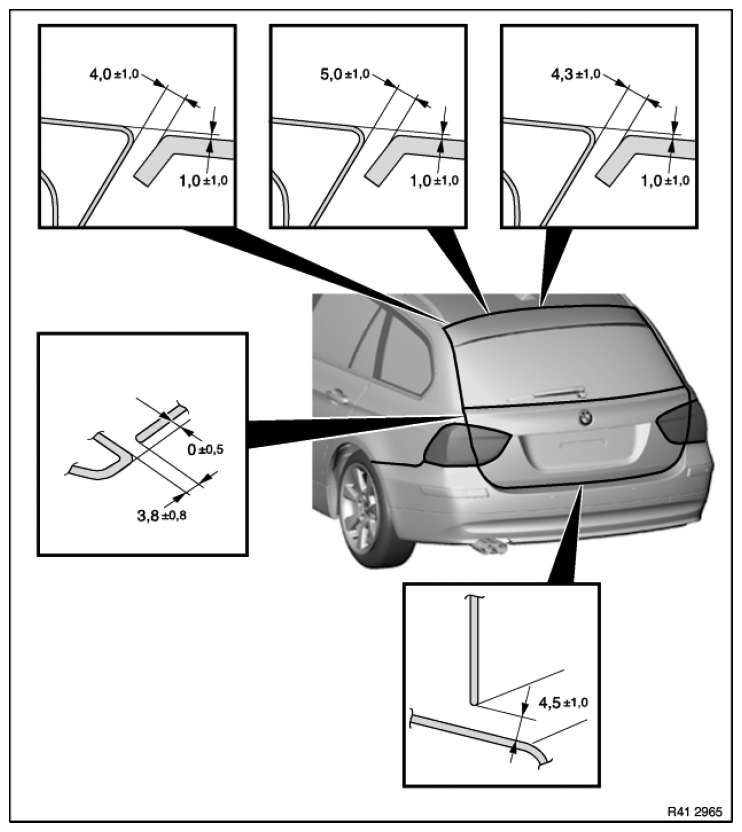

Fig 5: Roof, Tailgate, Quarter Panel And Rear Bumper Body Gap Dimensions And Measurement Points

G06978067

Courtesy of BMW OF NORTH AMERICA, INC.

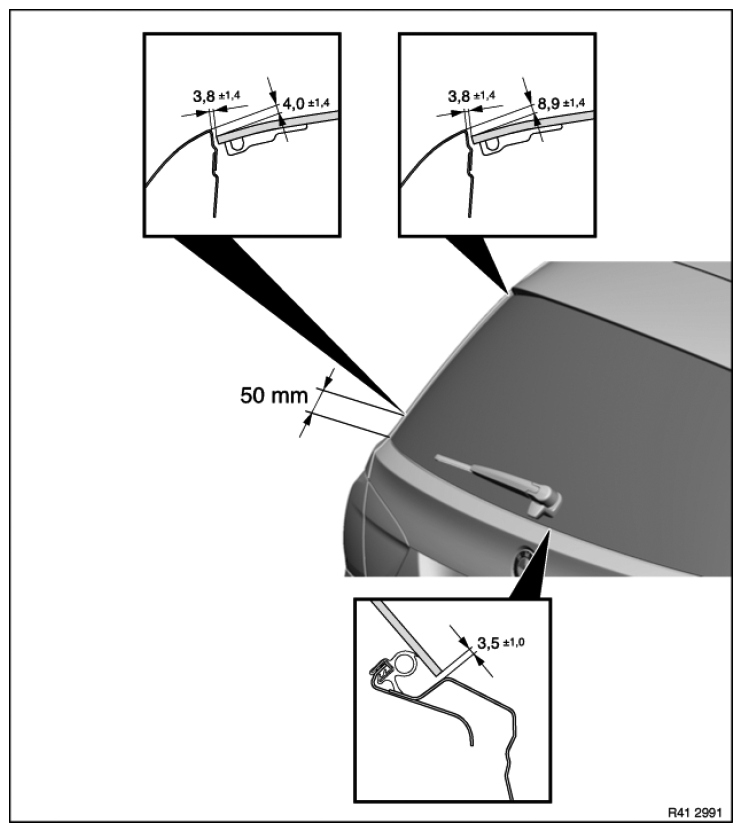

Fig 6: Tailgate Glass And Quarter Panel Body Gap Dimensions And Measurement Points

G06978068

Courtesy of BMW OF NORTH AMERICA, INC.
