51 49 013 Removing and installing/replacing the cover for the rear window frame at top

Special tools required:

• 00 9 325

Necessary preliminary tasks:

• Remove rear TRIM PANEL FOR STORAGE SHELF
• Remove SIDE INNER TRIM PANEL  from left and right tailgate.

Release screws (1).

Release cover for rear window frame (2) with special tool 00 9 325 at marked points from clips (3) and remove.

Installation note:

If necessary, replace faulty clips (3).

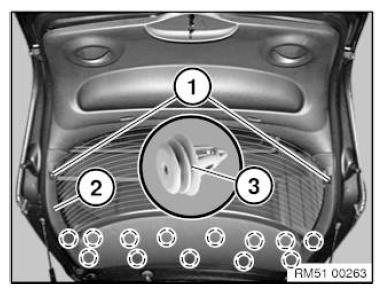

Fig 1: Locating Screws And Clips For Rear Window Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1) must not be damaged.

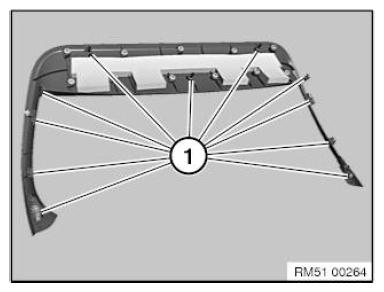

Fig 2: Locating Guides On Rear Window Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.
