51 21 300 Removing and installing/replacing weather strip on outside of front door

WARNING: This page is about a different variant/trim than selected.

Special tools required:

IMPORTANT: Observe PROCEDURE for using special tool 00 9 324 .

Removal:

Lower the door window glass.

Lever out the weather strip using special tool 00 9 324 (starting from the B-pillar).

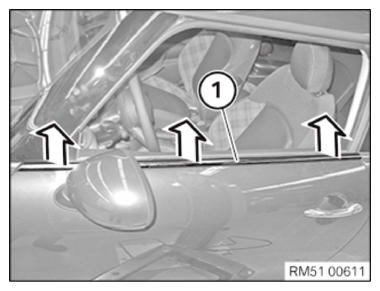

Fig 1: Levering Out Weather Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount weather strip (1).

Make sure the weather strip (1) is correctly positioned in areas (A) and (B).

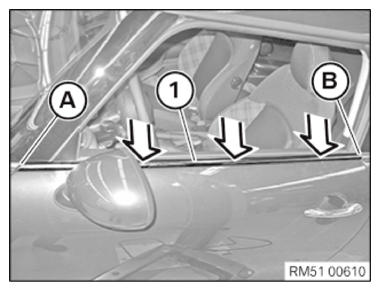

Fig 2: Mounting Weather Strip

Courtesy of BMW OF NORTH AMERICA, INC.
