Removing Carrier Support

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Mark severance cut (1) through 20 mm dia. hole and cut carrier support.

Open weld joints in areas (1).

Fig 1: Identifying Severance Cut And Welding Areas
G06854754Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Remove carrier support section.

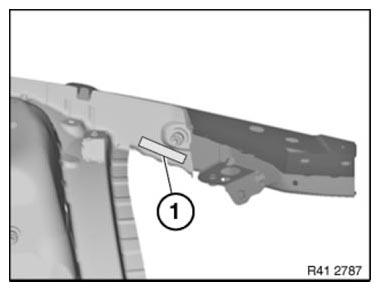

Fig 2: Identifying Weld Joint Area
G06899593Courtesy of BMW OF NORTH AMERICA, INC.
