51 46 020 Removing and installing left or right locator for rear parcel shelf

Necessary preliminary tasks:

• Unlock Easyload and support soft top bow

Unfasten screws (2).

Feed trim (3) out of strikers.

Installation:

Make sure mucket (1) is correctly seated on trim (3).

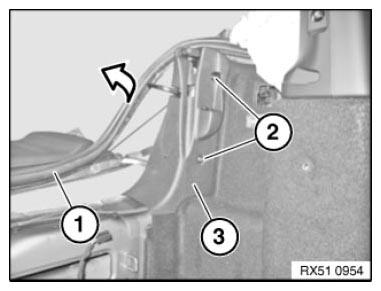

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove SWITCH FOR SOFT TOP/REAR WINDOW SHELF .
