63 10 004 Adjusting headlights

NOTE: Comply with TEST PRECONDITIONS FOR HEADLIGHT ADJUSTMENT .

Carry out headlight adjustment at adjusting screws (1) and (2).

A definite allocation of adjusting screws is not possible.

  1. Adjusting screw primarily for vertical adjustment
  2. Adjusting screw primarily for lateral adjustment

After headlight adjustment:

Perform reference run. For this purpose, switch off and on the headlights. Check again headlight adjustment.

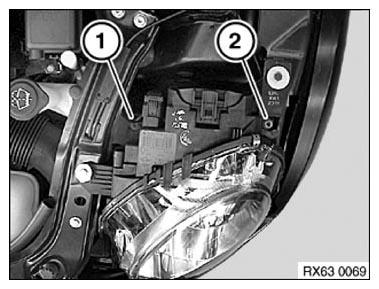

Fig 1: Identifying Headlight Adjustment Screws
G10002793Courtesy of BMW OF NORTH AMERICA, INC.
