61 35 970 Removing and installing/replacing luggage compartment aerial for comfort access system

Necessary preliminary tasks:

• Remove FRONT LUGGAGE COMPARTMENT FLOOR TRIM PANEL

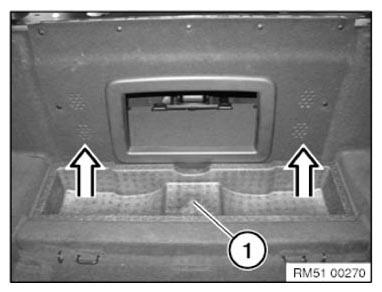

Remove the storage box (1) towards the top.

Fig 1: Removing Storage Box

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1).

Unlock latch mechanisms (3) and feed out luggage compartment aerial (2) from bracket in direction of arrow.

Fig 2: Removing Interior Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
