Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Do not twist knob during removal as this would cause the turning lock in the knob to shear off. Tug firmly to remove knob. To install, fit knob on shift lever, align and press on until knob is noticeably into place. See Fig 1.

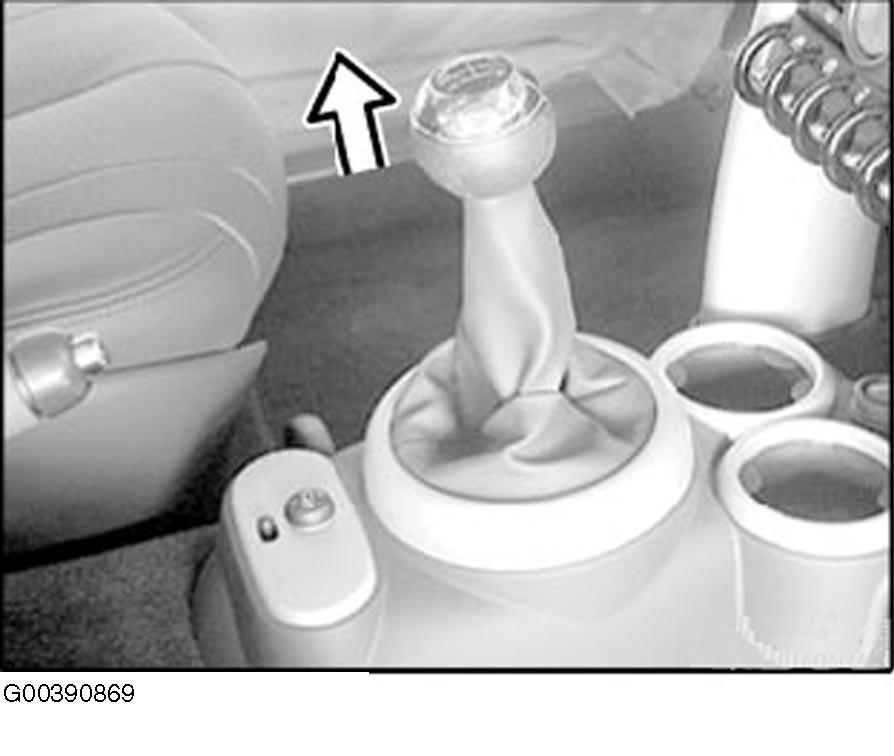

Fig 1: Removing Shift Lever Knob
G00390869Courtesy of BMW OF NORTH AMERICA, INC.
