51 43 201 Removing and installing or replacing trim for roof pillar at front (A-pillar), left or right

Special tools required:

• 00 9 325

Lever sun visor (1) out of counter support (2) in direction of arrow.

Release screws (3) and remove sun visor (1) in downward direction.

Fig 1: Removing Sun Visor

Courtesy of BMW OF NORTH AMERICA, INC.

Detach edge protection (1) in area of trim panel (2).

Remove trim panel (2) from clips (3) and clamp (4) using special tool 00 9 325 and remove towards the inside.

If necessary, unlock plug connection for tweeter and disconnect.

Installation note:

Make sure edge protection (1) is correctly seated.

Fig 2: Identifying Trim Panel, Clips And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clip (1).

Guides (2) must not be missing or damaged.

Replacement (depending on version):

Modify TWEETER (3).

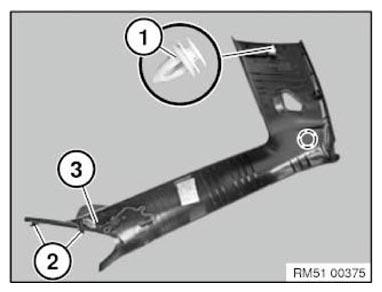

Fig 3: Identifying Tweeter, Guides, And Clip

Courtesy of BMW OF NORTH AMERICA, INC.
