51 49 000 Removing and installing or replacing trim for rear lid

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Release screws (1).

Unclip tailgate trim in the marked area (2) with special tool 00 9 325 .

Remove tailgate trim (2).

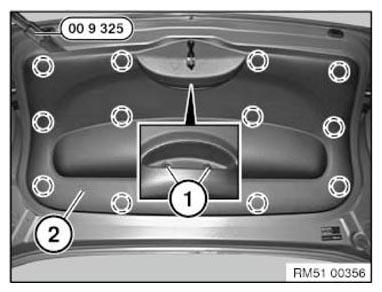

Fig 1: Removing Tailgate Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) must not be damaged.

If necessary, replace faulty clips.

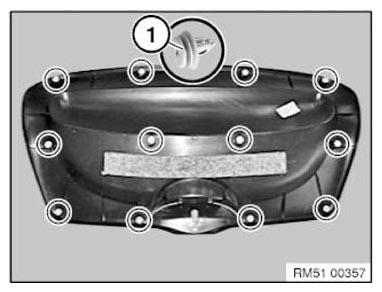

Fig 2: Identifying Tailgate Trim Clips

Courtesy of BMW OF NORTH AMERICA, INC.
