52 13... Removing and installing position switch

Necessary preliminary tasks:

• Remove FRONT SEAT

Unfasten plug connection (1) and disconnect.

Pull the metal clamp (2) off the seat mechanism.

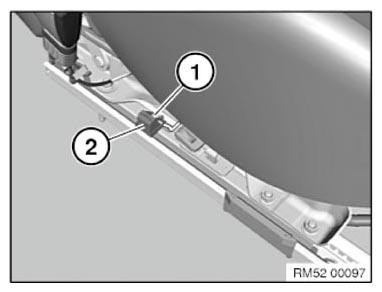

Fig 1: Identifying Plug Connection And Metal Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove position switch (2).

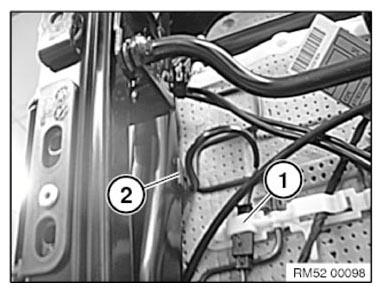

Fig 2: Identifying Position Switch And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
