Removal & Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Draw hydraulic fluid out of tank. Do not reuse. After completing tasks, bleed power steering system. See BLEEDING . Follow procedure on removing and installing ear hose clamp. See EAR HOSE CLAMPS . Release hose clamp (1) on supply reservoir and disconnect line. See Fig 1 .

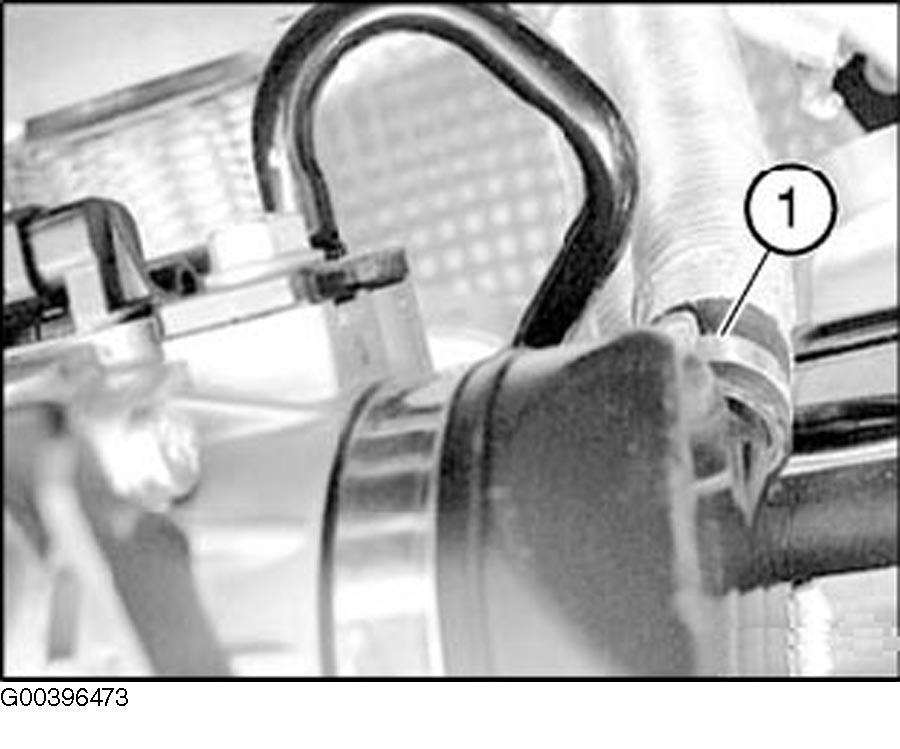

Fig 1: Releasing Hose Clamp On Supply Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (1) and disconnect suction line. Catch hydraulic fluid in a suitable container. See Fig 2 .

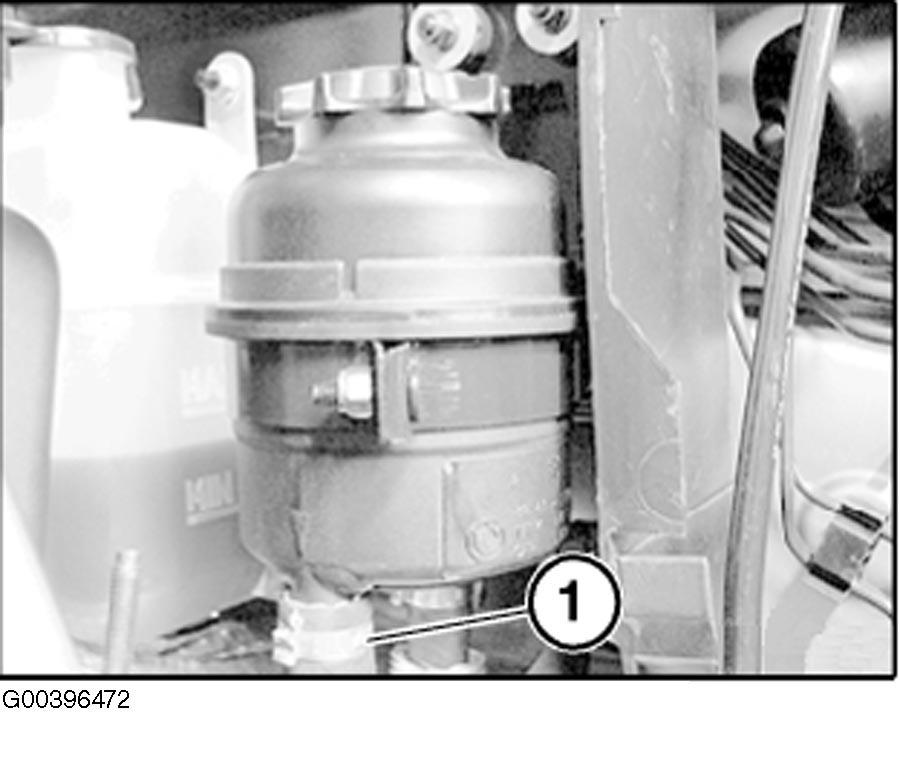

Fig 2: Releasing Hose Clamp & Disconnecting Suction

Courtesy of BMW OF NORTH AMERICA, INC.
