61 62 100 Adjusting the washer jet for rear window washer system

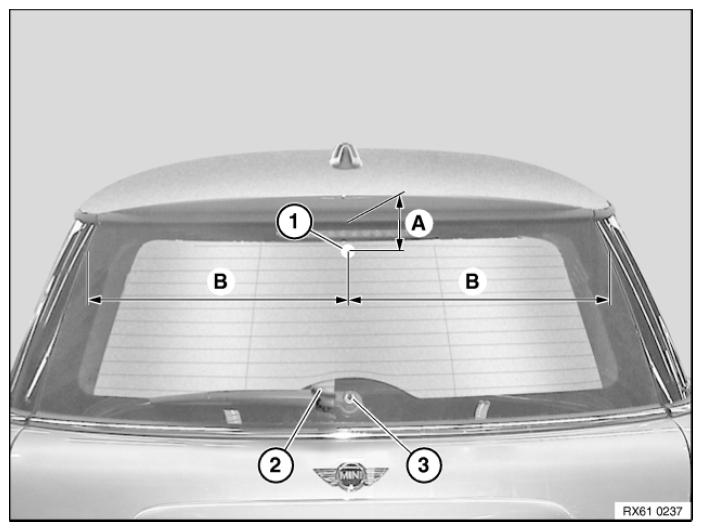

Fig 1: Adjusting Washer Jet For Rear Window Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Rear wiper must be in rest position.

Mark the contact point (1) with adhesive tape (A=55 mm/B=490 mm).

Operate the window washer system.

The spray jet must hit the mark.

If necessary, adjust the washer jet (3).

IMPORTANT: Do not insert pointy objects into the washer jet (3) (risk of damage).

Open protective cap (2).

Use a suitable tool to adjust the washer jet (3) until the spray jet hits the mark.

If applicable, remove adhesive residue from the rear window.

Fill up with washer fluid.
