84 31 550 Removing and installing/replacing hands-free microphone

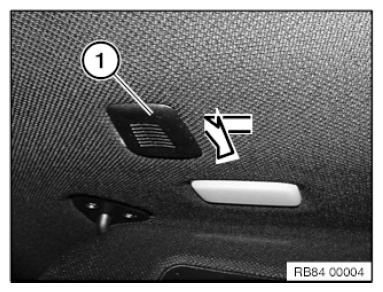

Lever out microphone (1) in direction of arrow.

Fig 1: Removing Microphone

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove microphone (2).

Fig 2: Identifying Microphone Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
