65 13 090 Removing and installing/replacing speaker (midrange speaker in rear side trim panel)

Necessary preliminary tasks:

• Remove REAR SIDE TRIM PANEL

Disconnect plug connection (1).

Release nuts at marked points.

Remove speaker (2).

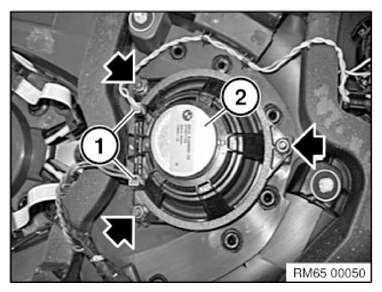

Fig 1: Identifying Rear Mid-Range Speaker And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
