65 20 090 Removing and installing or replacing aerial amplifier

Necessary preliminary work:

• Remove trim panel for rear window frame at top

If necessary, unlock plug connections and disconnect.

Release screws (1) and remove aerial amplifier (2).

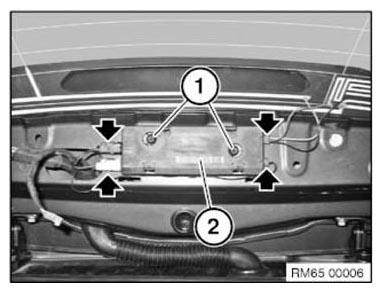

Fig 1: Identifying Aerial Amplifier Screws

Courtesy of BMW OF NORTH AMERICA, INC.
