65 77 016 Removing and installing airbag control unit

WARNING: Comply with AIRBAG SAFETY REGULATIONS .
Incorrect handling can lead to airbag deployment and cause injury.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

Unscrew nuts (1).

Tightening torque 65 77 1AZ .

Take off earthing cable (2).

Unlock plug connection (3) at airbag control unit (4) and disconnect.

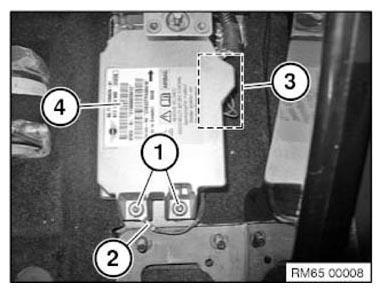

Fig 1: Identifying Airbag Control Unit, Plug Connection, Earthing Cable And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Take off holder (2).

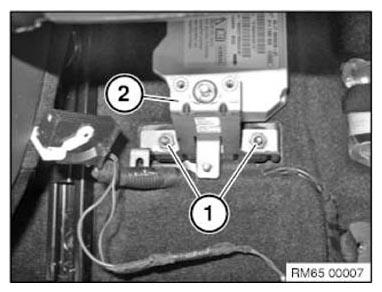

Fig 2: Identifying Holder And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 65 77 1AZ .

Remove airbag control unit (2).

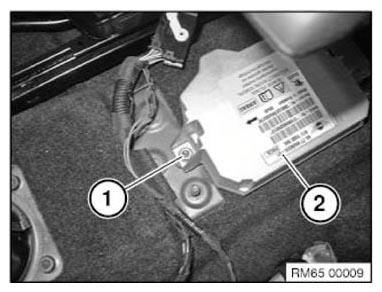

Fig 3: Identifying Airbag Control Unit And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
