51 24 100 Removing and installing/replacing tailgate lock

Necessary preliminary tasks:

• Remove COVER FROM TAIL PANEL

Release screws (1) on tailgate lock (2).

Tightening torque 51 24 1AZ

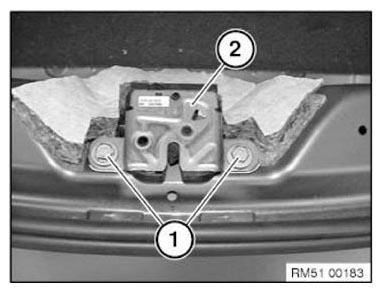

Fig 1: Identifying Screws On Tailgate Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove tailgate lock (2).

Installation note:

Adjust TAILGATE CATCH .

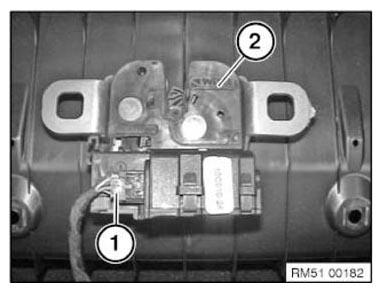

Fig 2: Identifying Tailgate Lock And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
