41 00... Body Gap Dimensions

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm

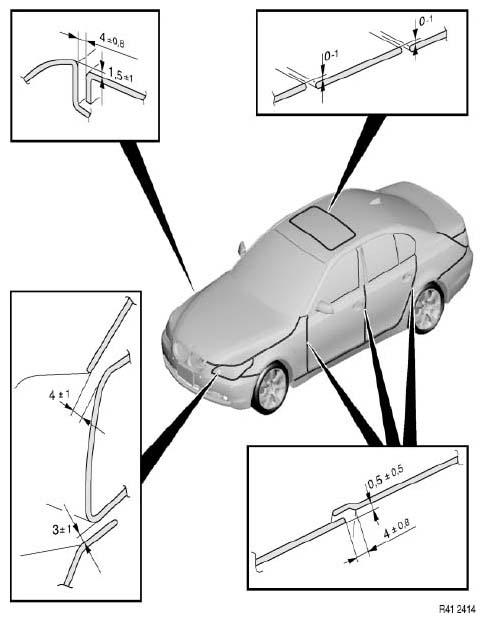

Fig 1: Front View Exterior Body Gap Dimensions And Measurement Points
G05477068Courtesy of BMW OF NORTH AMERICA, INC.

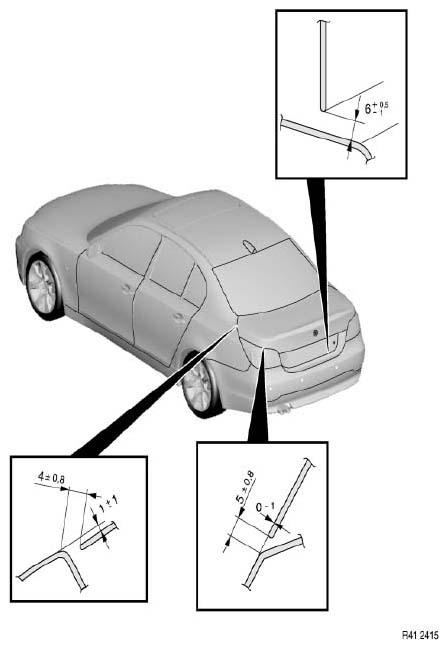

Fig 2: Rear View Exterior Body Gap Dimensions And Measurement Points
G05477069Courtesy of BMW OF NORTH AMERICA, INC.
