72 11 097 Removing and installing/replacing rear center lower strap (5-seater)
Installation note:
- Microencapsulated nuts (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of hardening)
- Microencapsulated nuts must not be retightened
- In the event of repeated use, the thread must first be cleaned

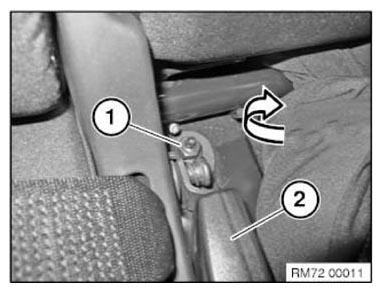

Carefully push the seat cover away to expose the screw point.
Slacken nut (1).
Tightening torque 72 11 08AZ .
Remove lower strap fitting (2).
Installation note:
Lower strap is encoded against incorrect assembly (2).
Replace nut (1).
