72 11 096 Removing and installing/replacing rear left or right lower strap (4- seater)
Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of hardening)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

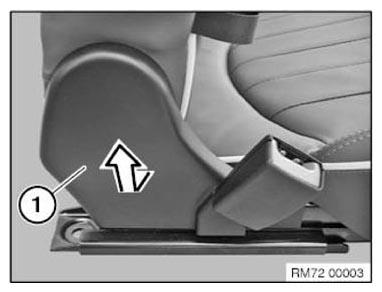

Remove cover (1) in direction of arrow.
Installation note:

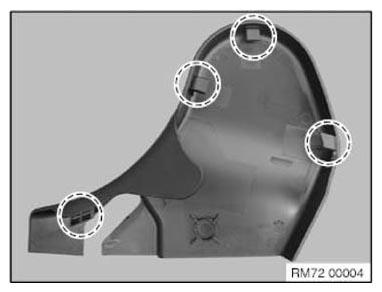

Retaining lugs on cover must not be damaged.
Replace cover if necessary.
Release screw (1).
Tightening torque 72 11 08AZ .
Remove lower strap fitting (2).
Installation note:
Replace screw (1).
Lower strap is encoded against incorrect assembly (2).
