51 49 005 Removing and installing/replacing trim for lower tailgate

Necessary preliminary tasks:

• Remove BOTH COVERS FOR REAR WINDOW FRAMES

Release screws (1) in handle recess.

Tightening torque 51 49 2AZ .

Release trim panel (3) from clips (2) and remove.

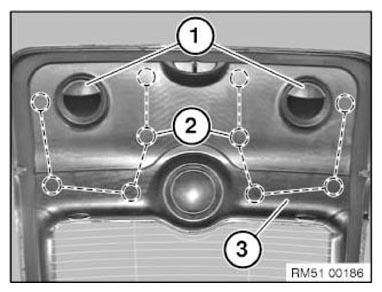

Fig 1: Identifying Handle Recess Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips (1) on trim panel (2).

Fig 2: Identifying Clips On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
