52 26 153 Removing and installing/replacing seat cover for left rear seat (5 seater)

Special tools required:

Necessary preliminary work:

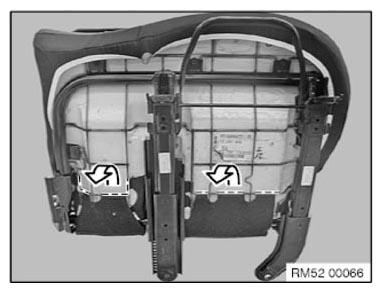

Disengage welt of seat cover in marked area from wire frame.

Fig 1: Detaching Welt

Courtesy of BMW OF NORTH AMERICA, INC.

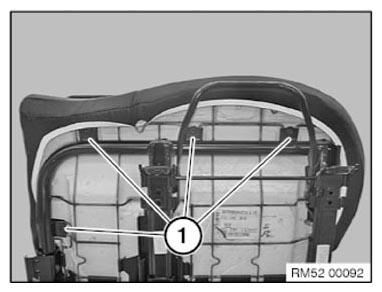

Release screws (1).

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Feed wire frame (1) out of seat mechanism.

Remove seat cover with upholstery and wire frame from seat mechanism.

Fig 3: Removing Left Rear Seat Mechanism Wire Frame

Courtesy of BMW OF NORTH AMERICA, INC.

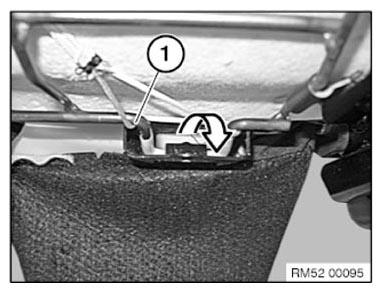

Detach welt from wire frame.

Detach tension strap from wire frame.

Remove seat cover with upholstery from the wire frame.

Fig 4: Removing Rear Seat Cover With Upholstery From Wire Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

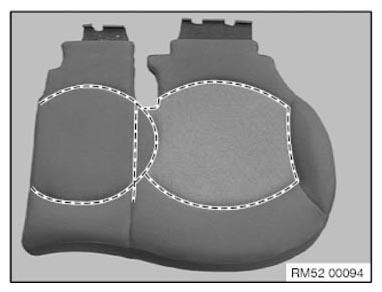

Fig 5: Locating Rear Seat Cover Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

Fig 6: Inserting Clamp Using Special Tool (52 0 050)

Courtesy of BMW OF NORTH AMERICA, INC.
