52 13 041 Removing and installing or replacing inner cover on left or right front seat

Release screw (1).

Tightening torque 52 13 09AZ .

Remove cover in direction of arrow.

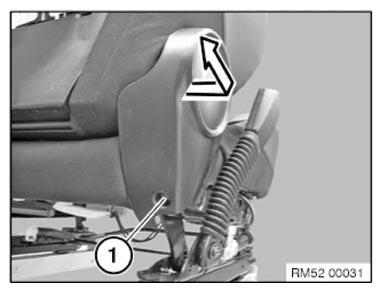

Fig 1: Removing Front Seat Inner Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure the cover is correctly seated on the seat mechanism.

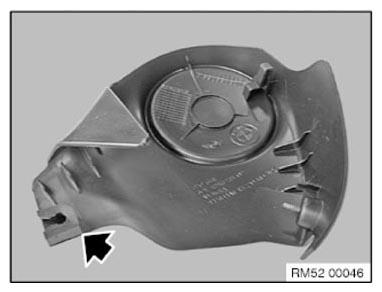

Fig 2: Locating Seat Mechanism Cover

Courtesy of BMW OF NORTH AMERICA, INC.
