52 13 031 Removing and installing/replacing backrest adjustment lever on left or right front seat

1. Pull up lever upwards.
2. Firmly unclip lever from linkage.

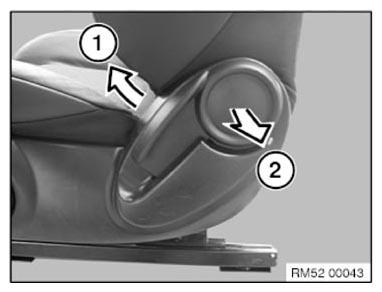

Fig 1: Removing Front Seat Backrest Adjustment Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The latch mechanism of the lever must not be damaged.

Replace lever if necessary.

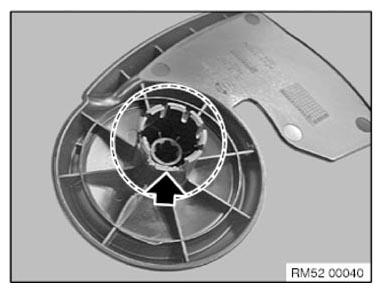

Fig 2: Locating Lever Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
