612410 Charger

NOTE: (Battery trickle charger) Will be replaced by the battery trickle charger "Acctiva easy" in the future. Order number 81 39 0 409 468 (European version) and 81 39 0 409 471 (US version)

SI number: 02 02 00 (545)

Consisting of:

1 = 0493810 Charger

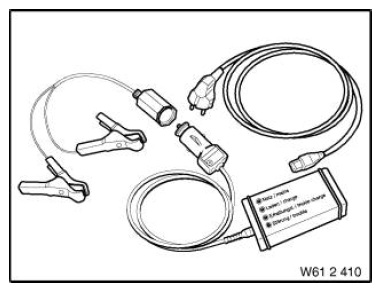

Fig 1: Identifying Charger (612410)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Trickle charger) with connecting line (ribbon cable) for cigarette lighter socket

2 = 0493811 Power supply cable

NOTE: (Power cable) country-specific equipment, replaced by 61 2 440

3 = 0493812 Adapter cable

NOTE: For direct connection to battery or positive battery connection point

9 = 0493813 Operating instructions
