610230 Die-plate

NOTE: (Matrix for contacts "DFK 40" and "MAK 8") For crimping contacts when replacing interior fuse box (up to model year 09/2005) and for further applications. Only to be used in conjunction with crimping pliers 610202 from the set 61 0 200 .

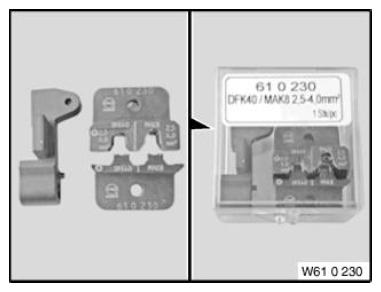

Fig 1: Identifying Die-Plate (610230)

Courtesy of BMW OF NORTH AMERICA, INC.

Storage Location: M22 x 204

SI number: 02 07 05 (233)
