2339646 Crimping tool

Minimum set: Measuring and testing equipment MP

NOTE: Crimping pliers CS40 for mounting matrices to process cable contacts for wires with cable cross-sections of 16mm² (with matrix 83302352539) to 35mm² (with matrix 83302339647 ). Delivery specification of crimping pliers CS40 including case and ring spanner (for emergency release).

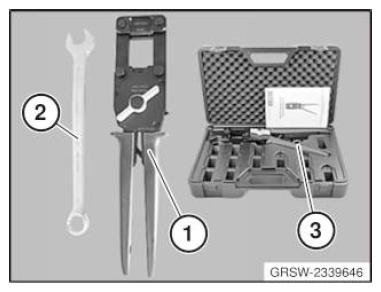

Fig 1: Identifying Crimping Tool (2339646)

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 02 08 12 (892)
