616030 Adapter cable

NOTE: (V adapter cable set (5 x)) Elo connector system for electrical test on separated plug connections (program selection switch on automatic transmission, etc.) - Elo = electronic contacts

Storage Location: D108

G101

SI number: 02 02 94 (807)

Consisting of:

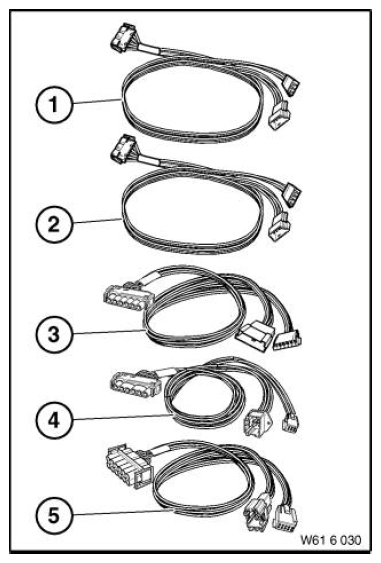

Fig 1: Identifying Adapter Cable (616030)

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 0492869 Adapter cable

NOTE: (V adapter cable (Elo), 3-pin, zero-encoded)

2 = 0492870 Adapter cable

NOTE: (V adapter cable (Elo), 4-pin, zero-encoded)

3 = 0492871 Adapter cable

NOTE: (V adapter cable (Elo), 6-pin, single row zero-encoded)

4 = 0492872 Adapter cable

NOTE: (V adapter cable (Elo), 6-pin, double row zero-encoded)

5 = 0492873 Adapter cable

NOTE: (V adapter cable (Elo), 10-pin, zero-encoded)

9 = 0492874 Operating instructions
