612470 Adapter cable

Minimum set: Measuring and testing equipment MP

NOTE: (V adapter cable, four-pin) 1st application: On engines with electric coolant pump (e.g. N52). 2nd application: On active steering (AFS). 3rd application: Diagnosis on hot-film air-mass meter.

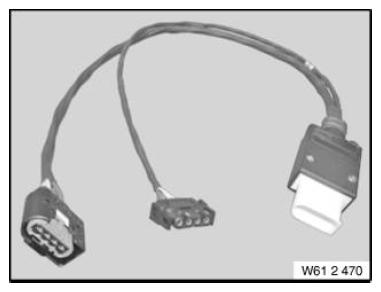

Fig 1: Identifying Adapter Cable (612470)

Courtesy of BMW OF NORTH AMERICA, INC.

Storage Location: C106

B115

SI number: 02 01 05 (186)
