612070 Cable

Minimum set: Measuring and testing equipment MP

NOTE: (Cable set) For performing installation or adjusting procedures on removed front seat with electrical seat adjustment 61 2 071 For activating removed soft top E85 and R52

Storage Location: N214

J107

SI number: 02 12 91 (450)

Consisting of:

1 = 0492803 Cable

NOTE: (Voltage supply cable) Connection between a battery and various adapter cables

2 = 0492804 Adapter cable

NOTE: Model series: E36

3 = 0492805 Adapter cable

NOTE: Model series: E38

4 = 0493308 Adapter cable

NOTE: Series: E46, E52

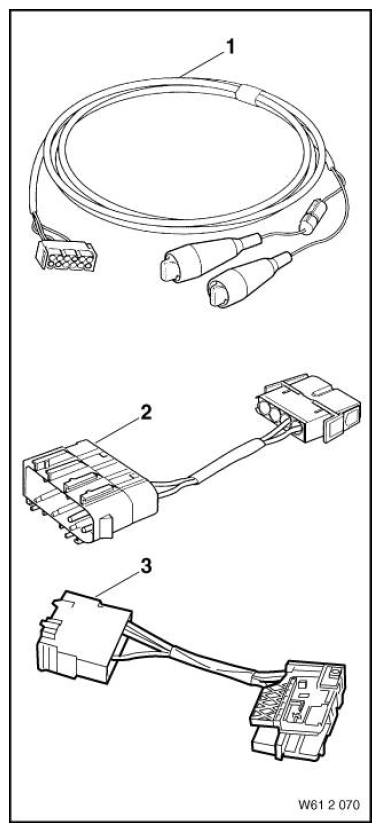

Fig 1: Identifying Cable (612070)

Courtesy of BMW OF NORTH AMERICA, INC.
