61 35 001 Removing and installing (replacing) trailer module

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Unfasten plug connection (1) and disconnect.

Unlock and remove the trailer module (2) on the latch mechanism (3).

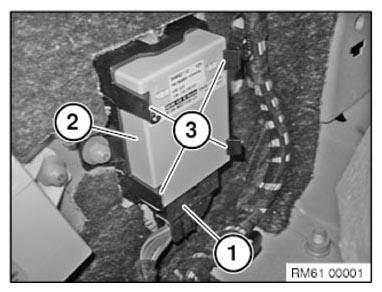

Fig 1: Identifying Trailer Module, Plug Connection And Latch Mechanism
G11009560Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
