61 31 117 Removing and installing/replacing power window switch (driver's side)

Necessary preliminary tasks:

• Remove the HANDLE RECESS ON THE FRONT DOOR TRIM PANEL

Release catches (1) on both sides.

Remove the switch (2) from the handle recess (3) in direction of arrow.

Installation note:

Latch mechanisms (1) must not be damaged or missing.

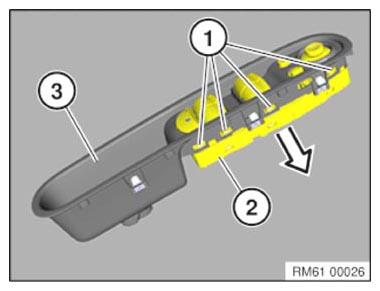

Fig 1: Removing Power Window Switch From Handle Recess

Courtesy of BMW OF NORTH AMERICA, INC.
