66 12 100 Removing and installing/replacing slide-in unit for radio-operated key

Special tools required:

00 9 340

Necessary preliminary work:

Remove LOWER LEFT TRIM FROM INSTRUMENT PANEL

IMPORTANT: In the event of complaint "slide-in unit for radio-operated key jams or can not be retained", carry out following checks before replacement:

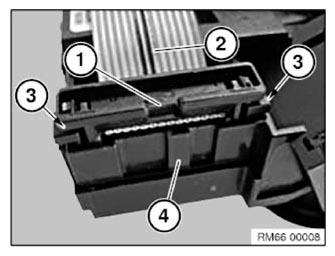

Check both sides of plug connection of ribbon cable (1) to slide-in unit for radio-operated key (4) for correct locking (3).

Fig 1: Identifying Ribbon Cable, Radio-Operated Key And Locking
Courtesy of BMW OF NORTH AMERICA, INC.
Check ribbon cable (2) for damage.

If required, lock plug connection of ribbon cable (1) correctly and carry out function check.
If this rectifies fault pattern, do not replace slide-in unit for radio-operated key.

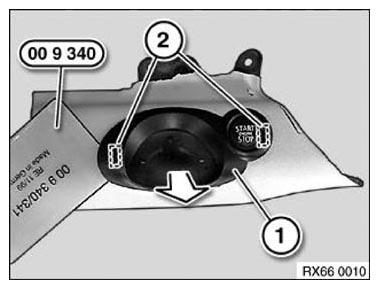

Lever out cover (1) in direction of arrow using special tool 00 9 340 at retaining points (2).

Fig 2: Removing Cover Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

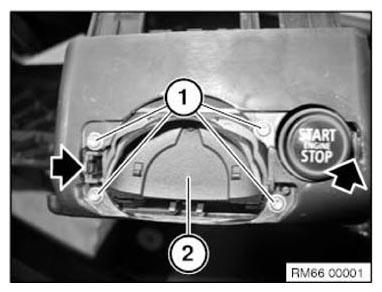

Release screws (1).

Release clips at marked points.

Remove slide-in unit for radio-operated key (2).

Fig 3: Identifying Radio-Operated Key And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure clasps (1) are correctly seated, replace if necessary.

Fig 4: Identifying Clasps

Courtesy of BMW OF NORTH AMERICA, INC.
