51 47 101 Removing and installing/replacing luggage compartment floor trim panel (Clubvan)

Necessary preliminary tasks:

Remove cover for lashing eyes (2).

Loosen screws (1) and remove lashing eyes (2).

Tightening torque 51 71 9AZ .

Remove lid (3).

Remove luggage compartment floor trim panel (4) though right-hand doorway.

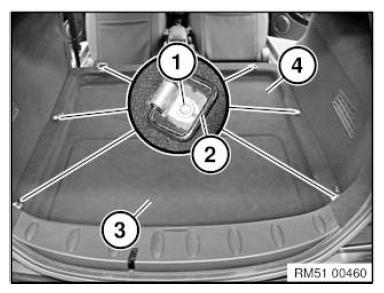

Fig 1: Identifying Luggage Compartment Floor Trim Panel, Lashing Eyes, Lid And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
