41 31... Additional bore holes for roof rails in roof outer skin

Read contents of BODY, GENERAL .

Observe procedure for REPAIR STAGE 1 .

When replacing the roof outer skin, the installation holes for the roof rails must be drilled additionally.

Adjust roof outer skin to fit and secure.

Drill 5 holes per side from below through roof outer skin.

Diameter of bore holes 6 mm.

If possible, drill bore holes through center of recesses (1) in convertible top bow (2).

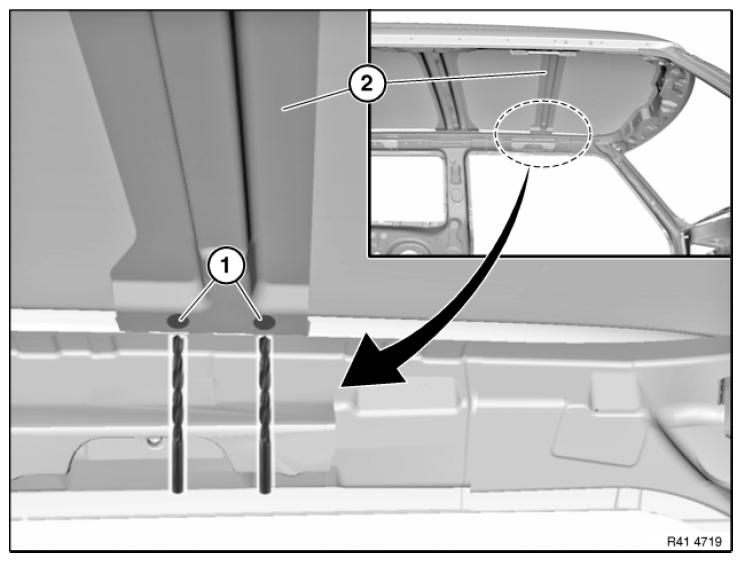

Fig 1: Identifying Area For Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Check whether bore holes are centrally located above recesses in convertible top bows. Rework if necessary.

Fit roof rails on roof outer skin.

Check that all threaded bolts of the roof rails match the bore holes.

If necessary, slightly rework bore holes until all 5 threaded bolts fit through roof outer skin.

Mark diameter for enlargement of bore holes (1).

Remove roof rails.

Enlarge bore holes according to mark (1).

Diameter of bore holes:

Fig 2: Enlarging Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the diameter of the bore hole is too small, this can lead to a groaning noise.

If the diameter is too large, this leads to leaks!

Place roof rails on roof outer skin for checking purposes.

Deburr bore holes.

Fig 3: Identifying Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.
